Everything the harness does, and how to drive it.

Marble is a self-hosted agent harness — one binary, your machine, your memory on disk. This is the complete feature guide: the agent loop, tools, models and image generation, cron, turn sinks, memory, Clerk, remote computer use, and the experimental edges.

agent loop tools models & images cron turn sinks memory Clerk computer use mpub TTS

Start here

What Marble is

Marble is a self-hosted agent harness. You run one process on a machine you own — an old laptop, a NUC, a cheap VPS — and reach it over a browser, usually over Tailscale. It talks to any OpenAI-compatible chat API: a local llama.cpp/vLLM/Ollama endpoint, or a hosted provider.

The design assumption is that your memory, secrets and transcripts stay on disk you control. There is no Marble account and no Marble cloud. The harness is the whole product: one binary, one SQLite file, plain-Markdown transcripts.

The mental model

Four things do all the work:

A session — a conversation. Sessions are listed in the left sidebar and each has a short id reachable at /s/{{id}}.
A turn — one user message. The harness loops model ↔ tools until the model stops calling tools, then emits a final reply. Everything you see in the transcript is a turn in progress or finished.
Tools — the model's hands. Filesystem, shell, web, memory, cron, sinks, image generation, and optionally a paired desktop machine.
Memory — sessions, daily logs, and intentional knowledge under ~/.marble/. This is what makes the harness improve instead of resetting.

Everything else in these docs is a detail of those four.

Get it running

Install and first run

Prebuilt binaries for Linux (amd64/arm64) and macOS (arm64) are on GitHub Releases. The landing page has copy-paste install blocks for Linux, macOS, user-systemd and LaunchAgent — including a prompt you can hand to a coding agent to do the install for you.

You need one OpenAI-compatible endpoint (/v1/chat/completions). Local models need no API key. Hosted providers take the name of an env var, never the secret.

mkdir -p ~/.local/bin
cd /tmp
VER=v0.4.9
curl -fsSLO "https://github.com/rendicott/marble/releases/download/${VER}/marble-harness-linux-amd64"
curl -fsSLO "https://github.com/rendicott/marble/releases/download/${VER}/SHA256SUMS"
sha256sum -c SHA256SUMS --ignore-missing
chmod +x marble-harness-linux-amd64
mv marble-harness-linux-amd64 ~/.local/bin/marble-harness
marble-harness --version

Run it as a user systemd unit (systemctl --user), not a system-wide service and not a process owned by a coding agent. One process owns $MEMORY via a file lock — two harnesses on the same memory dir will fight over it.

Then open http://127.0.0.1:8080/ — or the Tailscale address if you want it from your phone.

Orientation

The interface

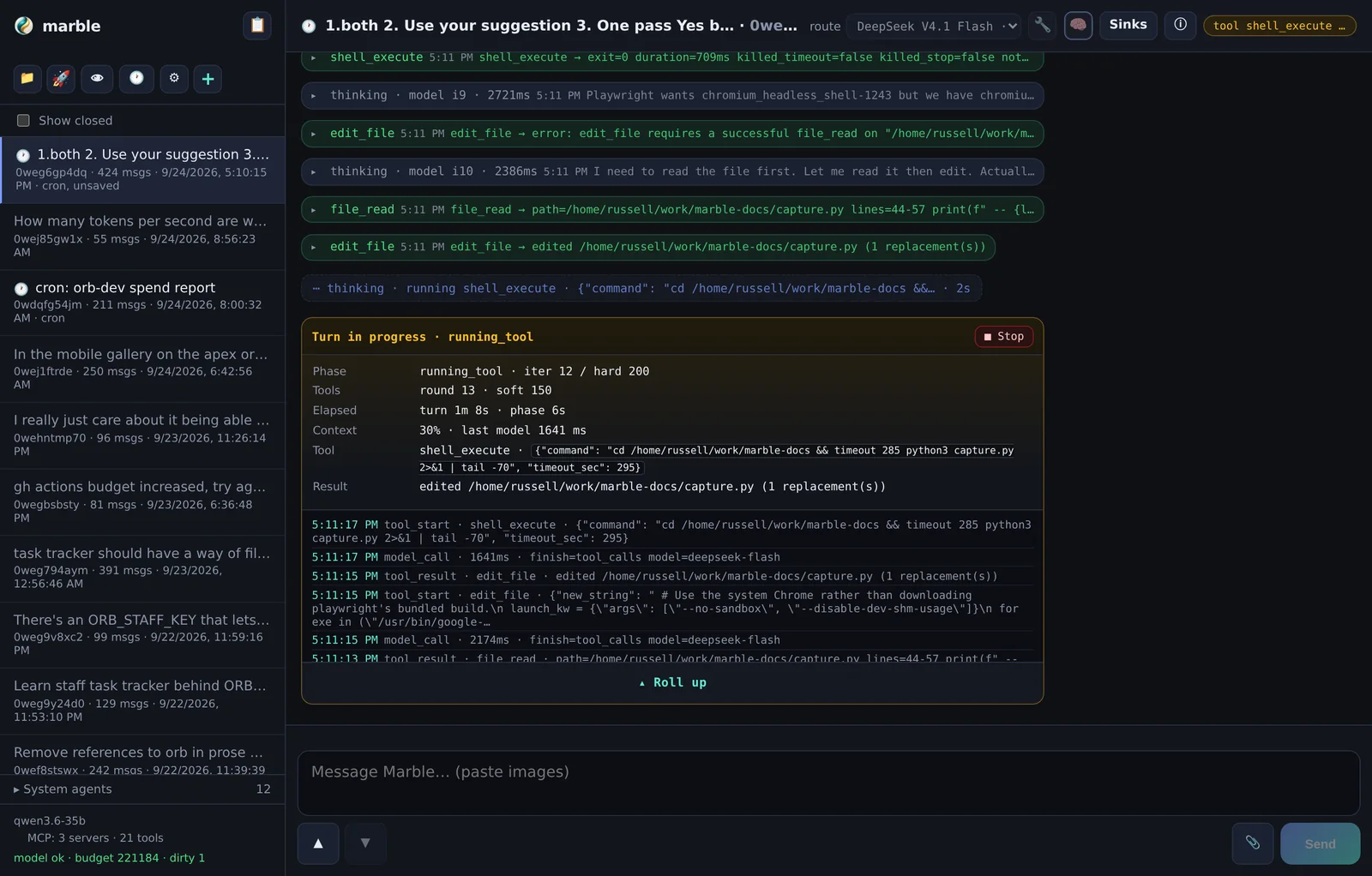

The whole UI is one page. Left is navigation, right is the transcript.

Sidebar

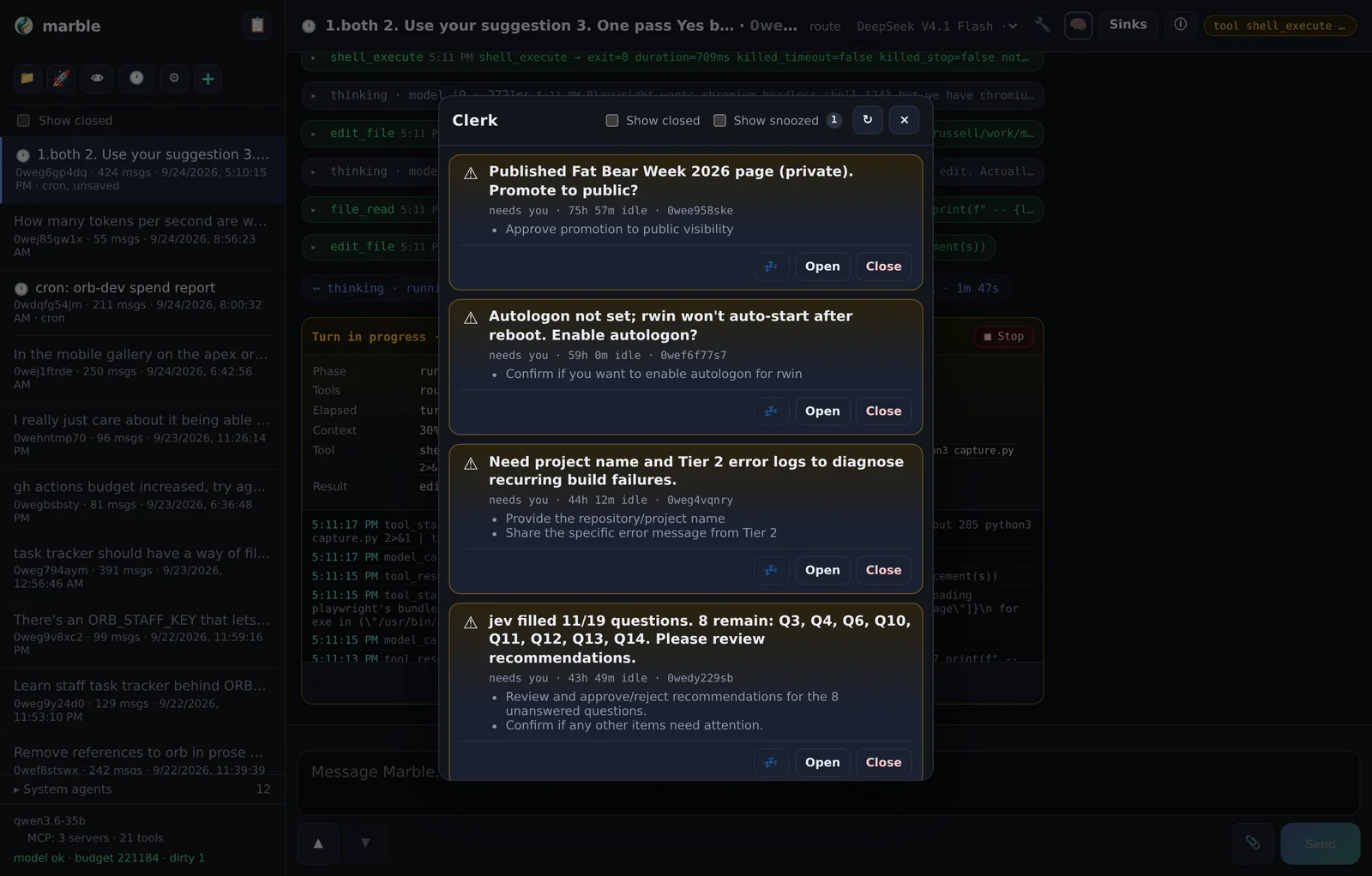

The brand row gives you 📋 Clerk — the attention dashboard. Below it:

Control	What it does
Sessions ▾	Expand/collapse the session list. Show closed reveals archived sessions.
📁	Workspace explorer — browse, edit and upload files inside the tool jail.
🚀	Published mpub pages, in a new tab.
👁	System prompt & every-turn context.

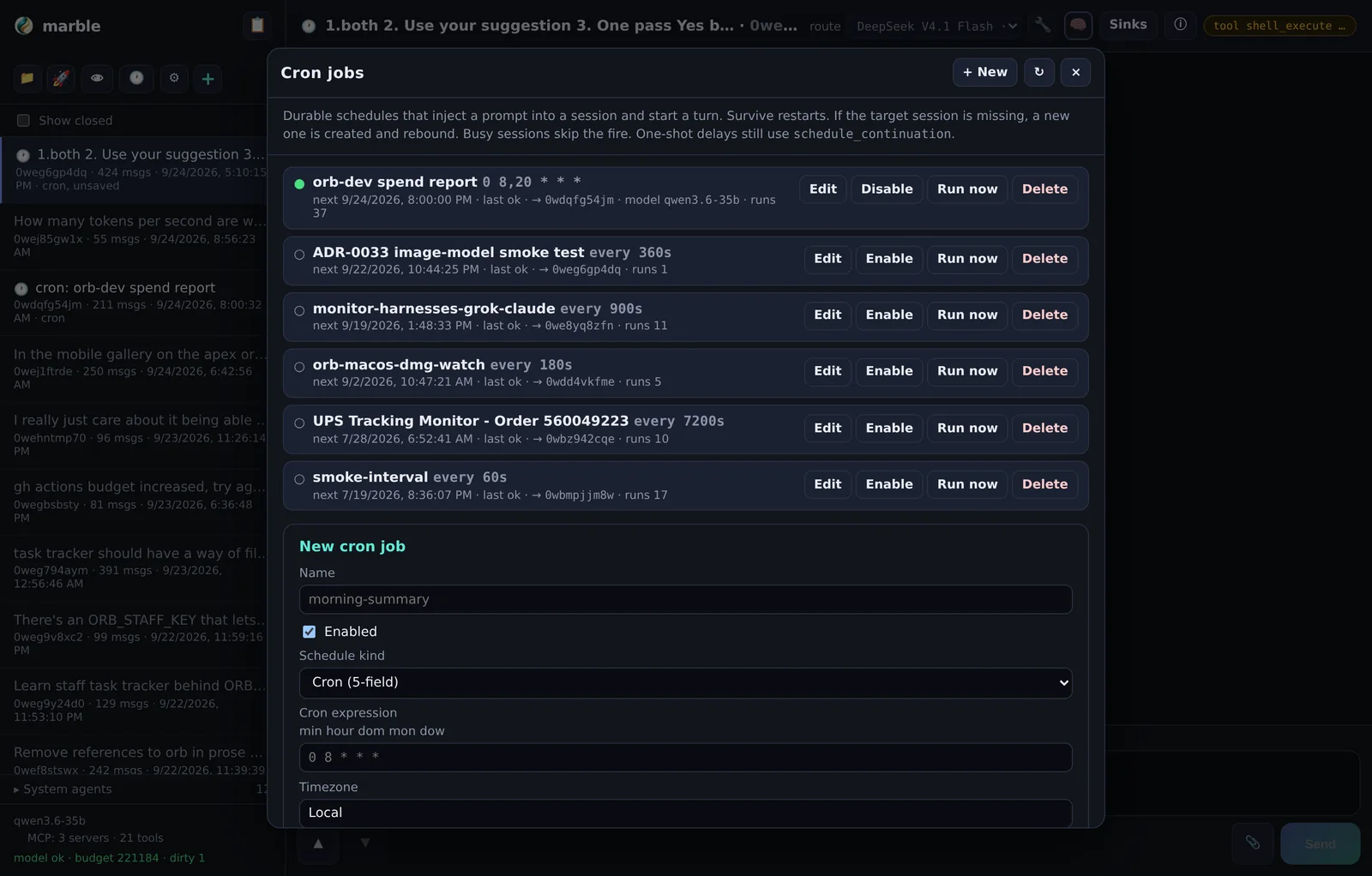

🕐	Cron jobs — durable recurring schedules.
⚙	Settings — models, agents, secrets, computers, sinks, TTS, UI, MCP.
+	New session.

At the bottom of the sidebar you get the active model, an MCP chip, and live health lines.

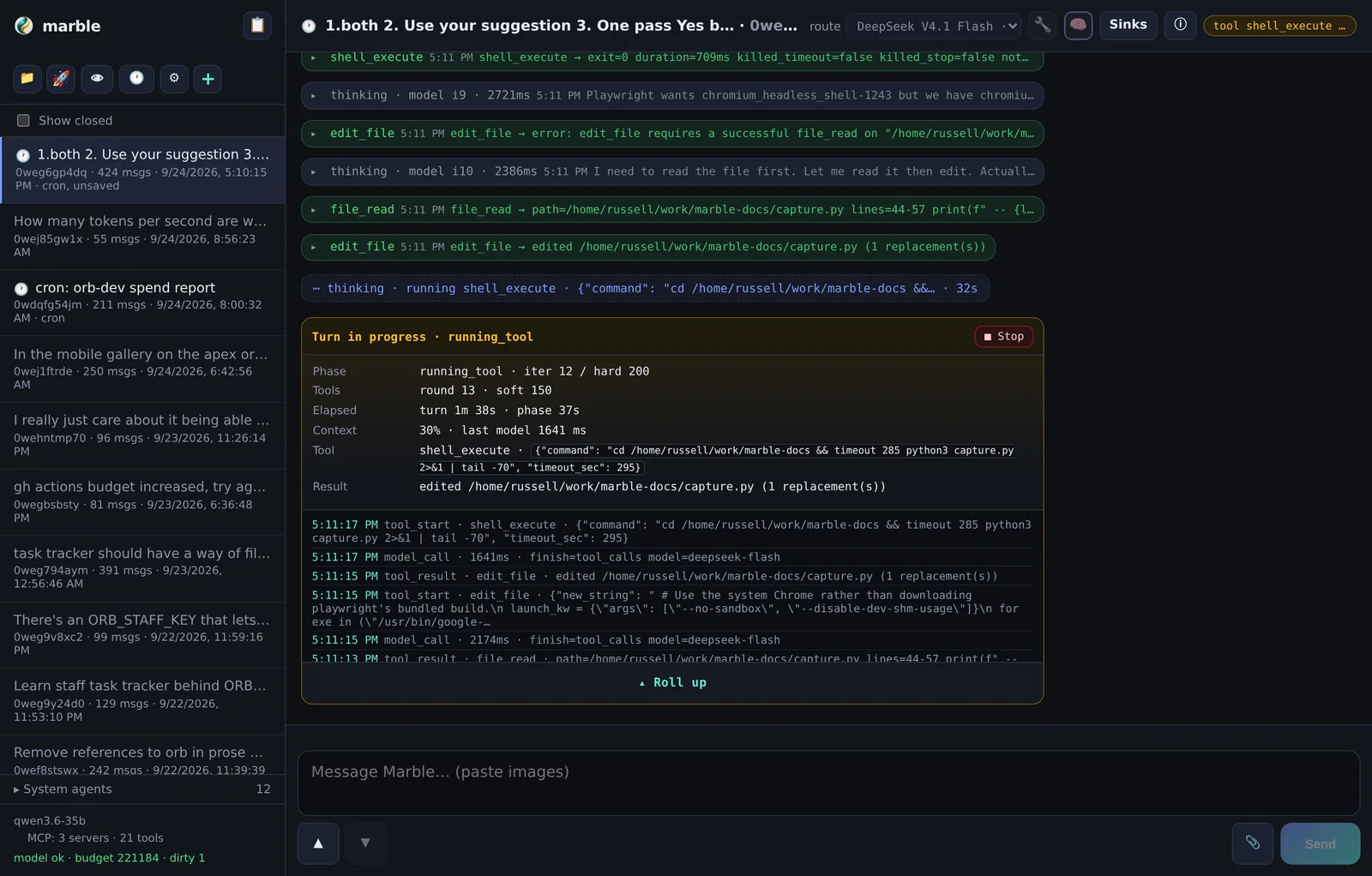

The session list. Sessions with a 🕐 badge are bound to a durable cron job.

Main pane

The header shows the session title, the route picker (which model or subprocess this session uses), and two density toggles: 🔧 for tool results and 🧠 for thinking. Both are right-clickable — see Gestures.

Below that: the transcript, then the composer. The composer takes pasted images, dragged files and the 📎 paperclip; staged files appear as chips and Send waits for uploads to finish.

A staged attachment chip in the composer. Send is held until the upload completes.

Turn progress and density

While a turn runs you get a live progress block — phase, iteration, tool rounds, context percentage, and a Stop button that cancels the turn (process-group kill, so backgrounded children cannot outlive it).

Tool rows are collapsed by default (ADR-0026) to keep long turns readable; the 🔧 and 🧠 toggles expand them, and each toggle remembers separately. Completed turns auto-collapse and can be re-opened with Show steps.

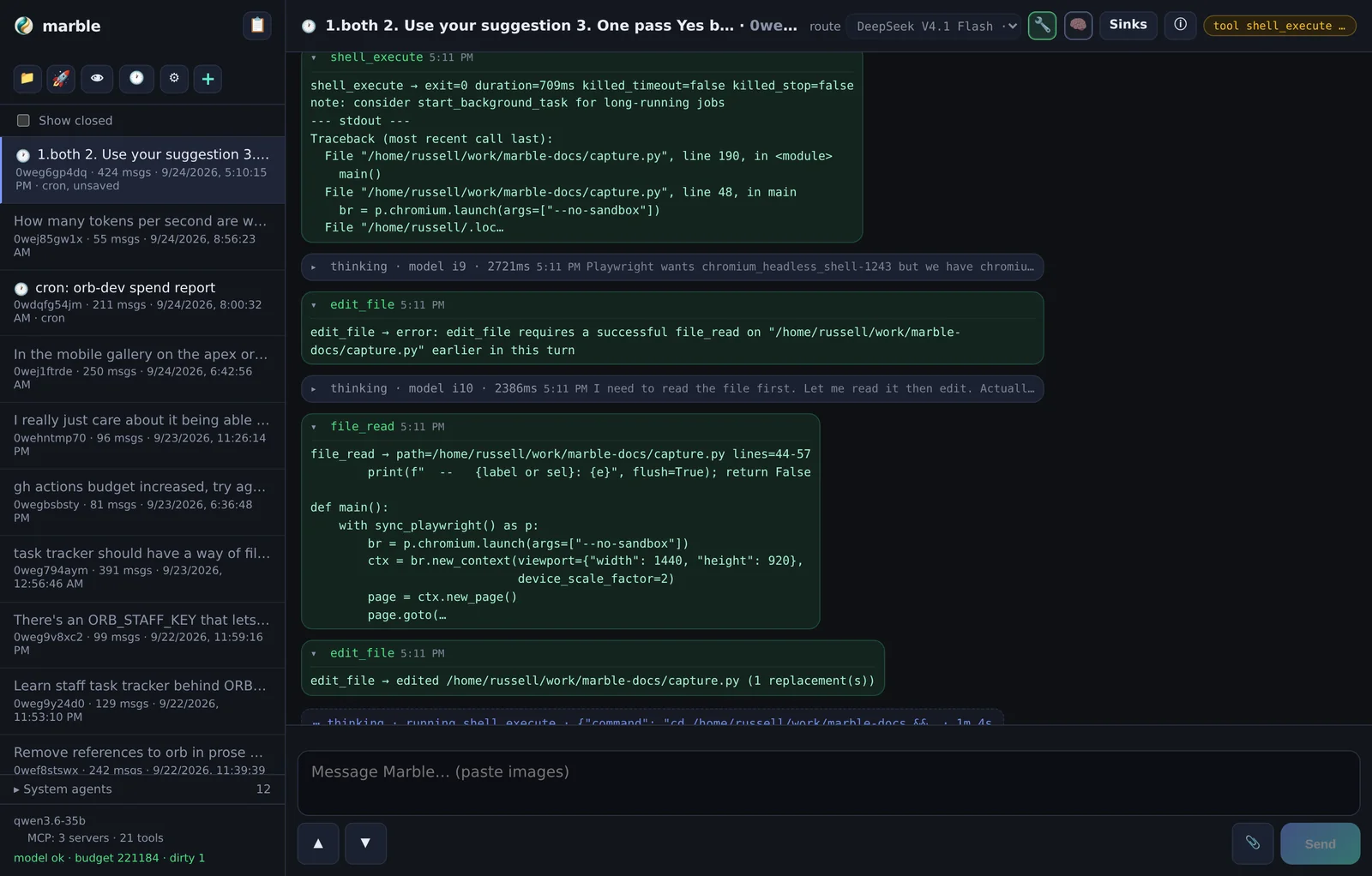

Tool results expanded — 🔧 tool results expanded

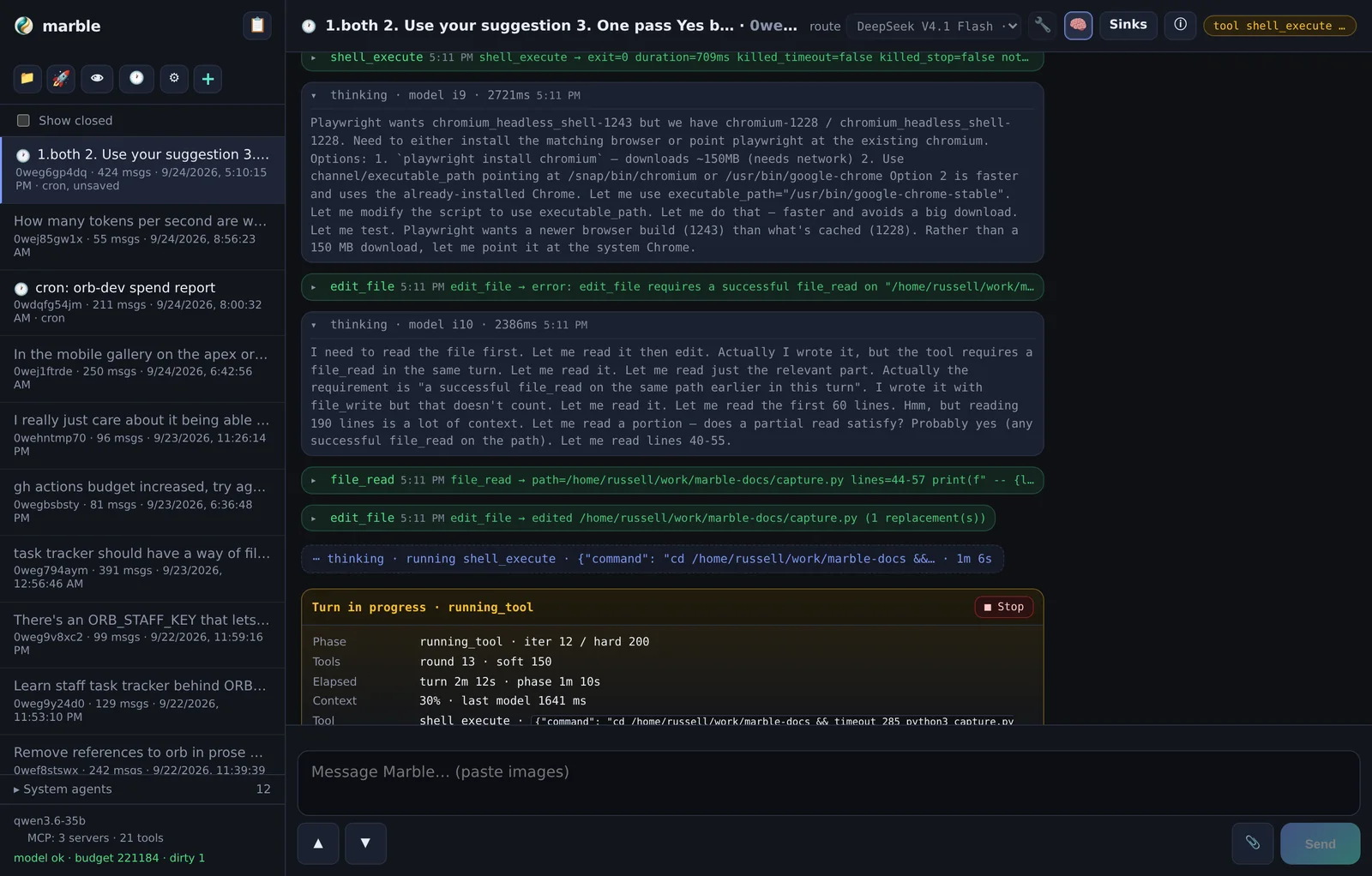

Tool expansion and thinking expansion are separate defaults, and thinking expansion is stored per session — not per browser. Expanding the brain in one session does not unfold it in another.

Themes

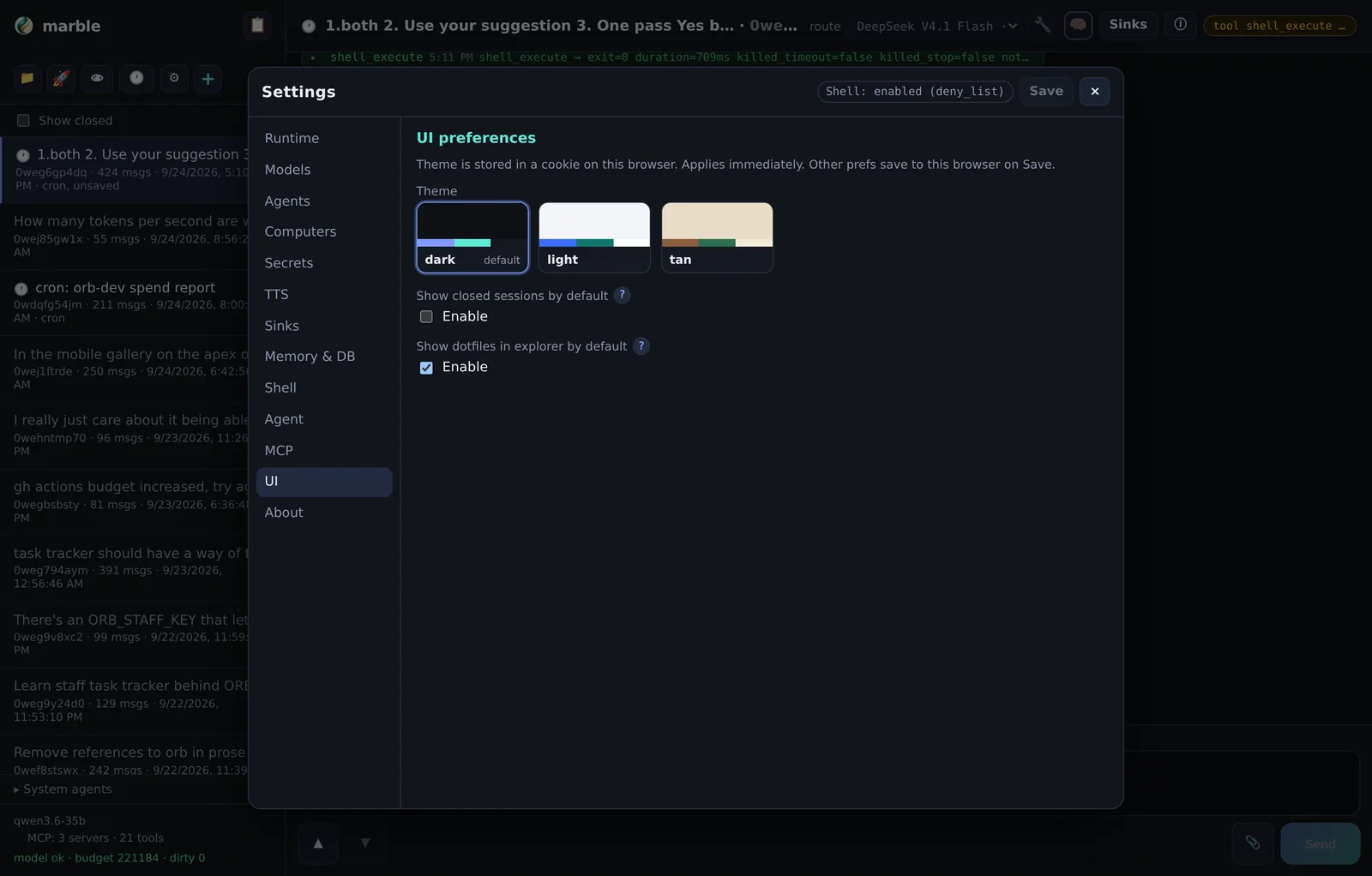

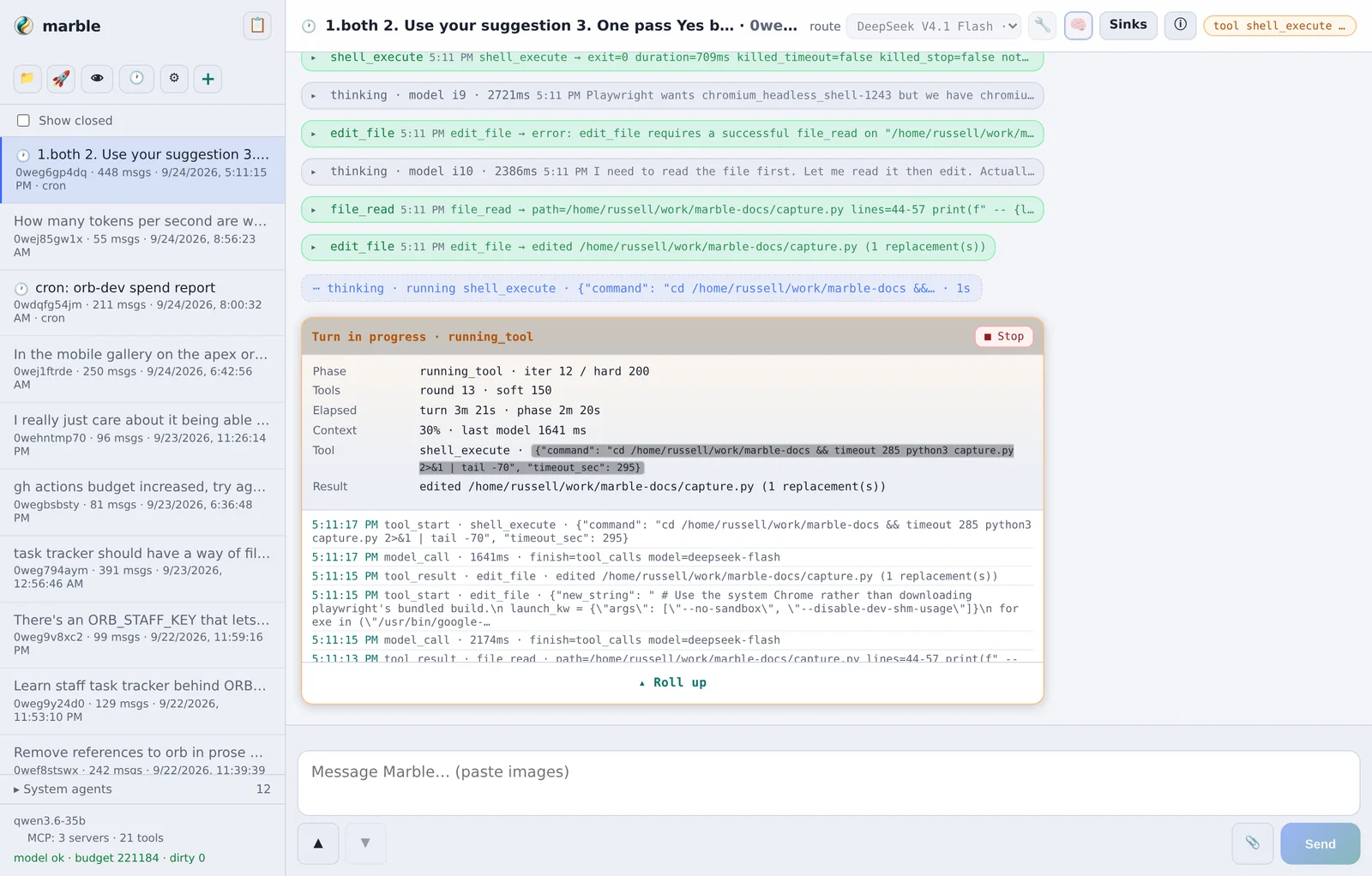

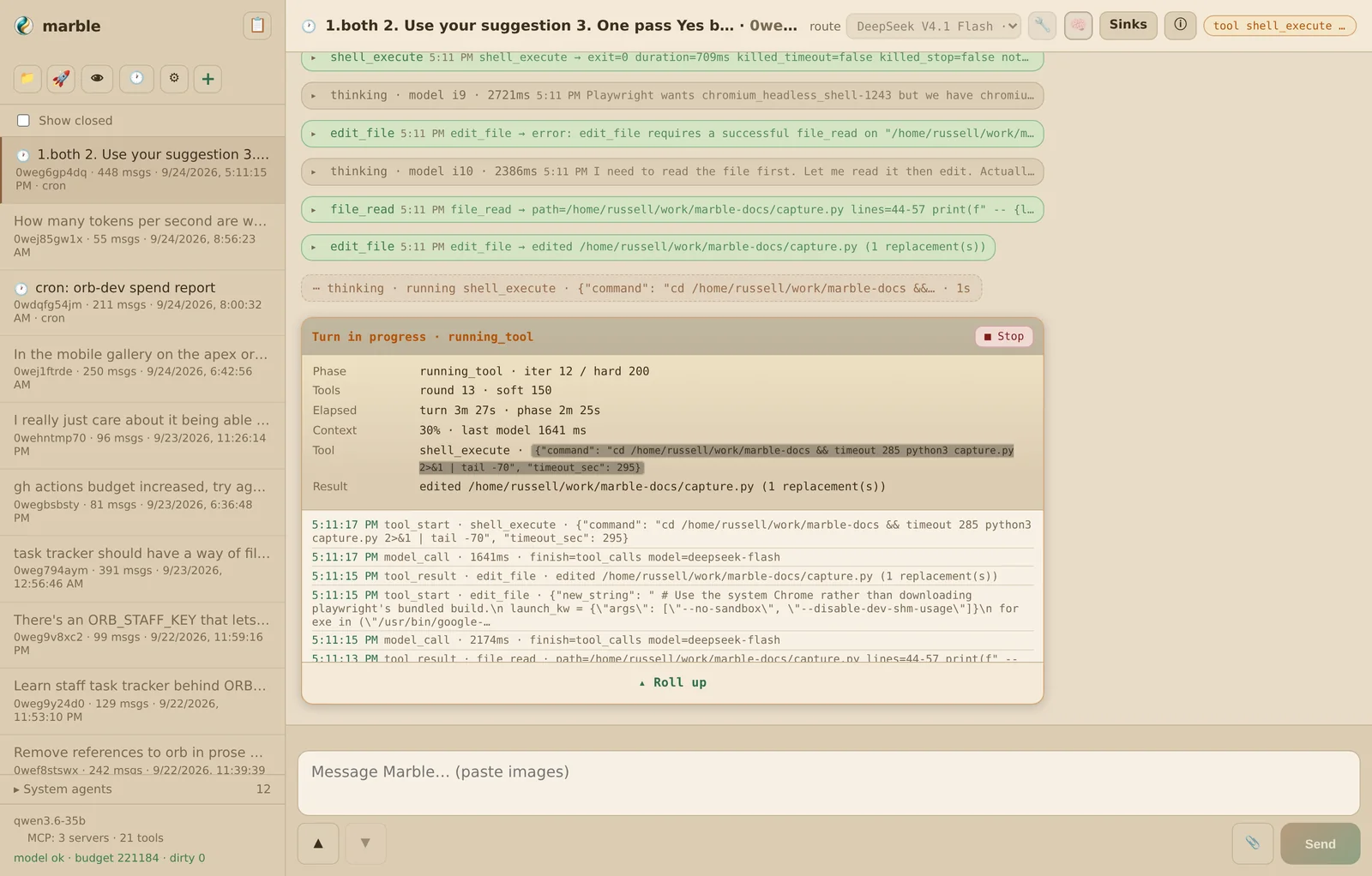

Three themes — dark, light and tan — chosen in Settings → UI and remembered in a cookie (ADR-0032).

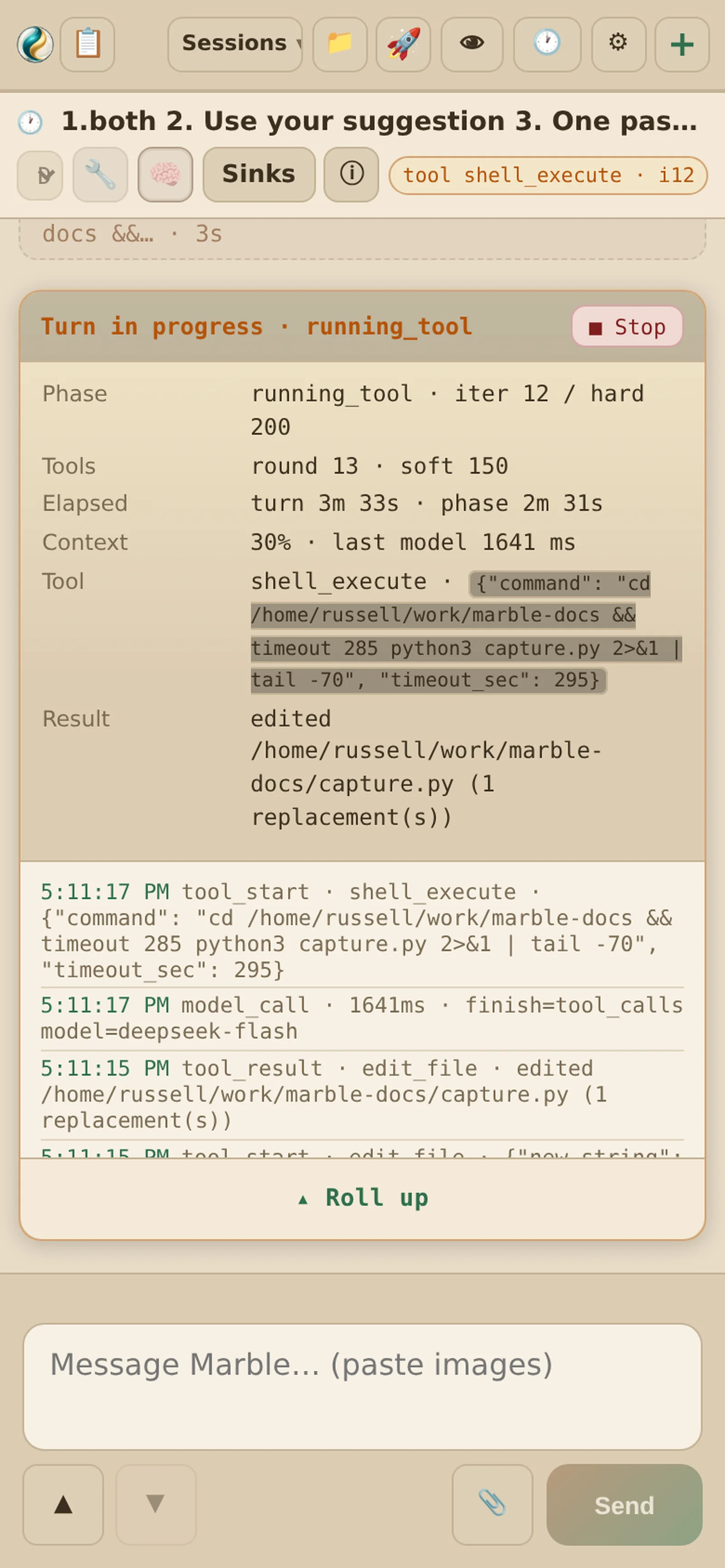

On a phone

The UI is mobile-first where it counts: composer, panels and session chrome are all usable on a small screen. The same two long-presses work as touch gestures on mobile, where there is no right-click.

Two hidden controls

Long-press and right-click

Two of the most useful controls have no visible affordance — they live behind a long-press on mobile / right-click on desktop.

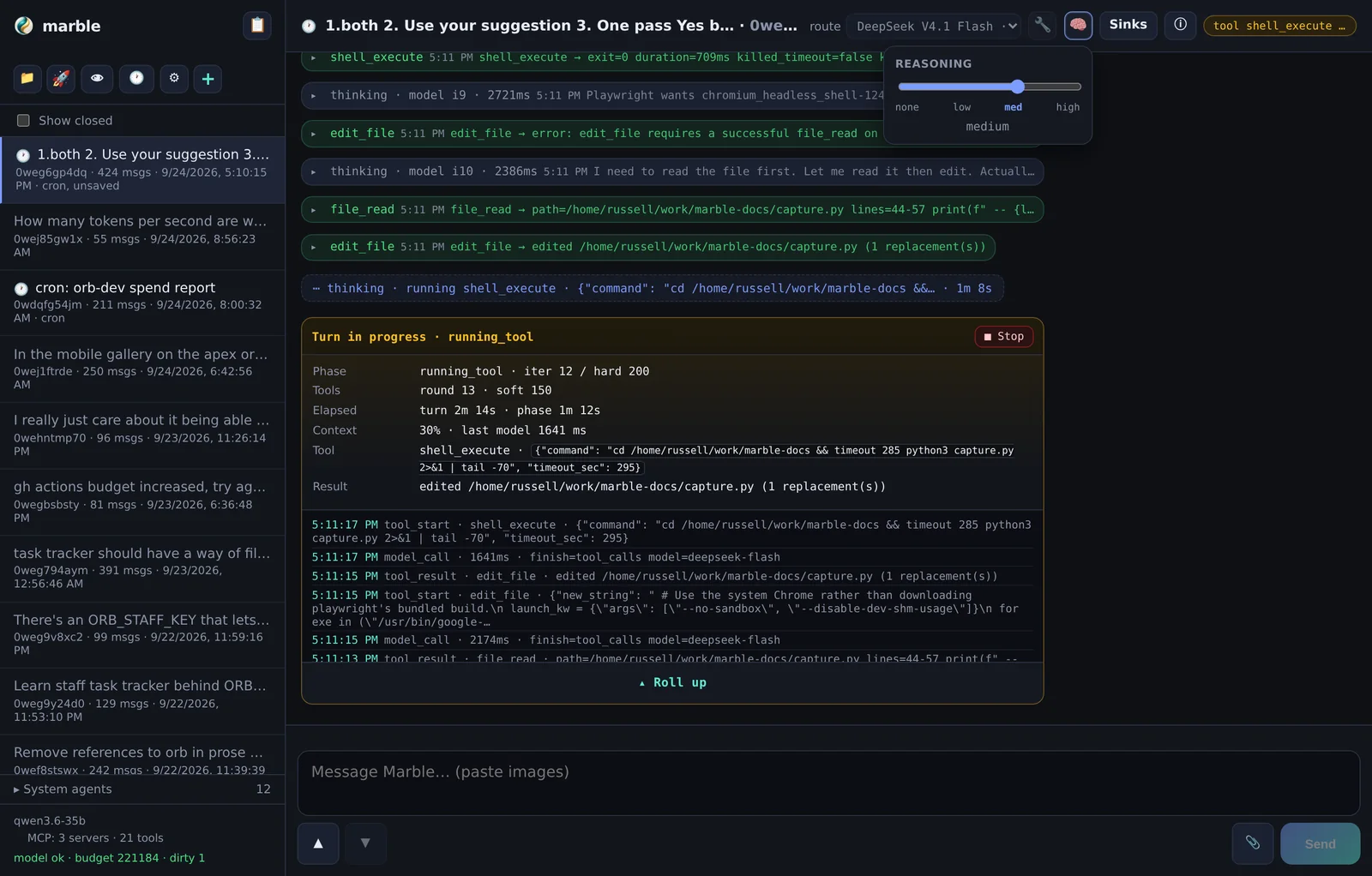

🧠 Reasoning effort

Plain click expands or collapses the model's thinking. Long-press (or right-click) opens a slider for reasoning effort: none · low · med · high. This is sent per-turn to endpoints that support it.

Send → route this turn

Plain click sends. Long-press (or right-click) opens the route popover, which sends this one turn to a subprocess agent instead of the session model — useful for handing a single big task to Grok or Claude without switching the whole session.

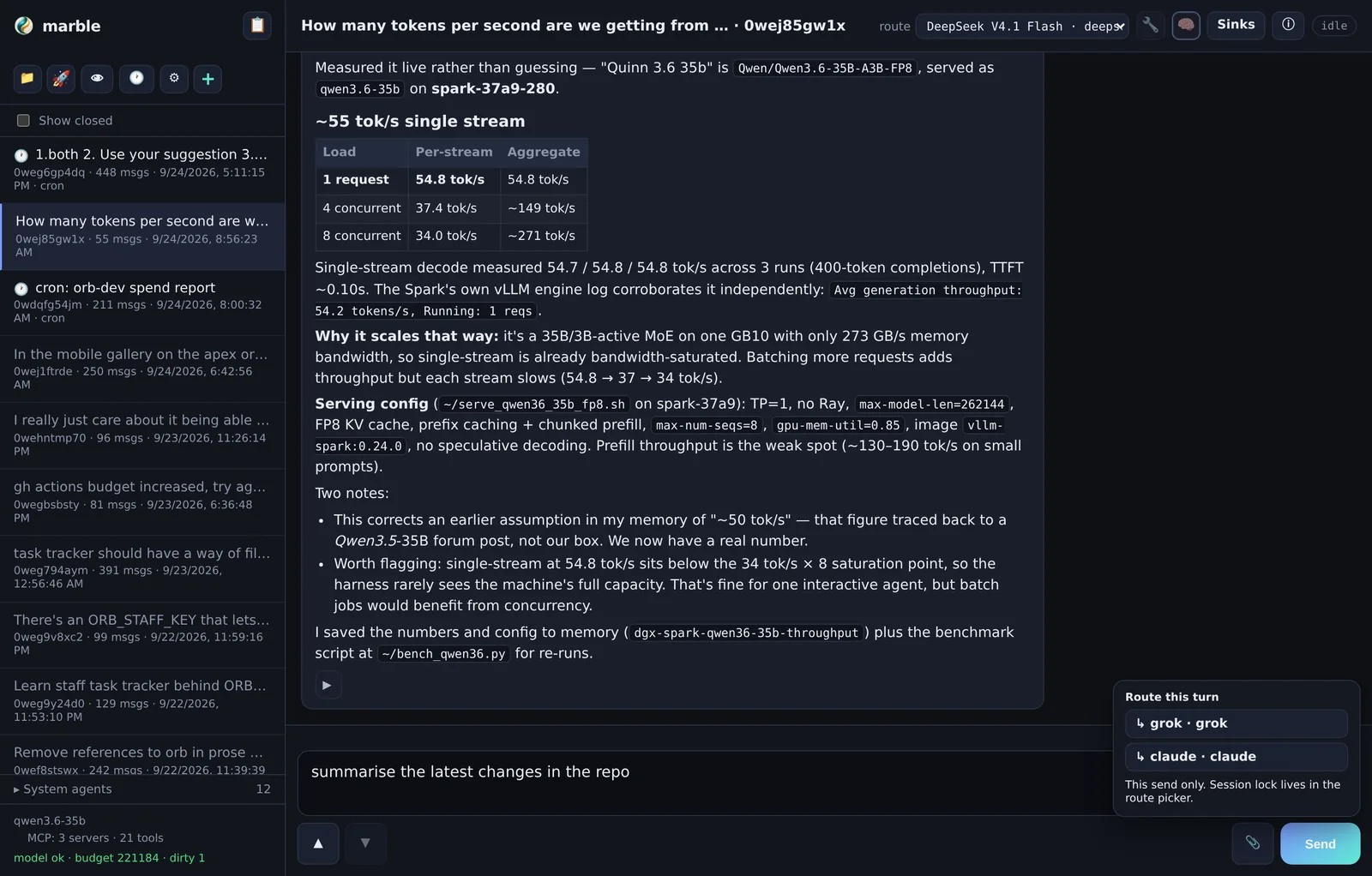

Long-press / right-click Send to route a single turn to a subprocess agent.

Where the session-level version lives

Sending one turn elsewhere is the gesture. Sending every turn elsewhere is the route picker in the main header — that locks the session to a catalog model or a subprocess preset. See Agent presets.

The engine

How a turn runs

A turn is a loop. The harness sends the transcript plus tool definitions to the model; the model either calls tools or answers. Tool calls are executed, appended, and the loop repeats until the model stops calling tools.

Budgets

Budget	Default	Behaviour at the limit
Tool rounds — soft	150	Advisory injected into the conversation; the model is told to wrap up.
Tool rounds — hard	200	Turn stops. Near the cap the harness auto-continues rather than dying mid-task.
Wall clock — soft	20 min	Advisory.
Wall clock — hard	2 h	Hard turn deadline.
Context	per model	History trimmed to the active model's limits; soft warn, then auto-compact.

Context budget, compaction and the system agents

Long sessions outgrow the model's window. Marble handles this by trimming history to the active model's limits and, past a threshold, running an LLM compaction pass — a separate system agent summarises older history and the transcript continues from the summary. Compaction sessions appear in their own sidebar section so you can inspect what was kept.

Auto-compact also considers the shape of the turn: computer-heavy turns get more retained history than text-only ones, because screenshots and pixel coordinates are expensive to re-derive.

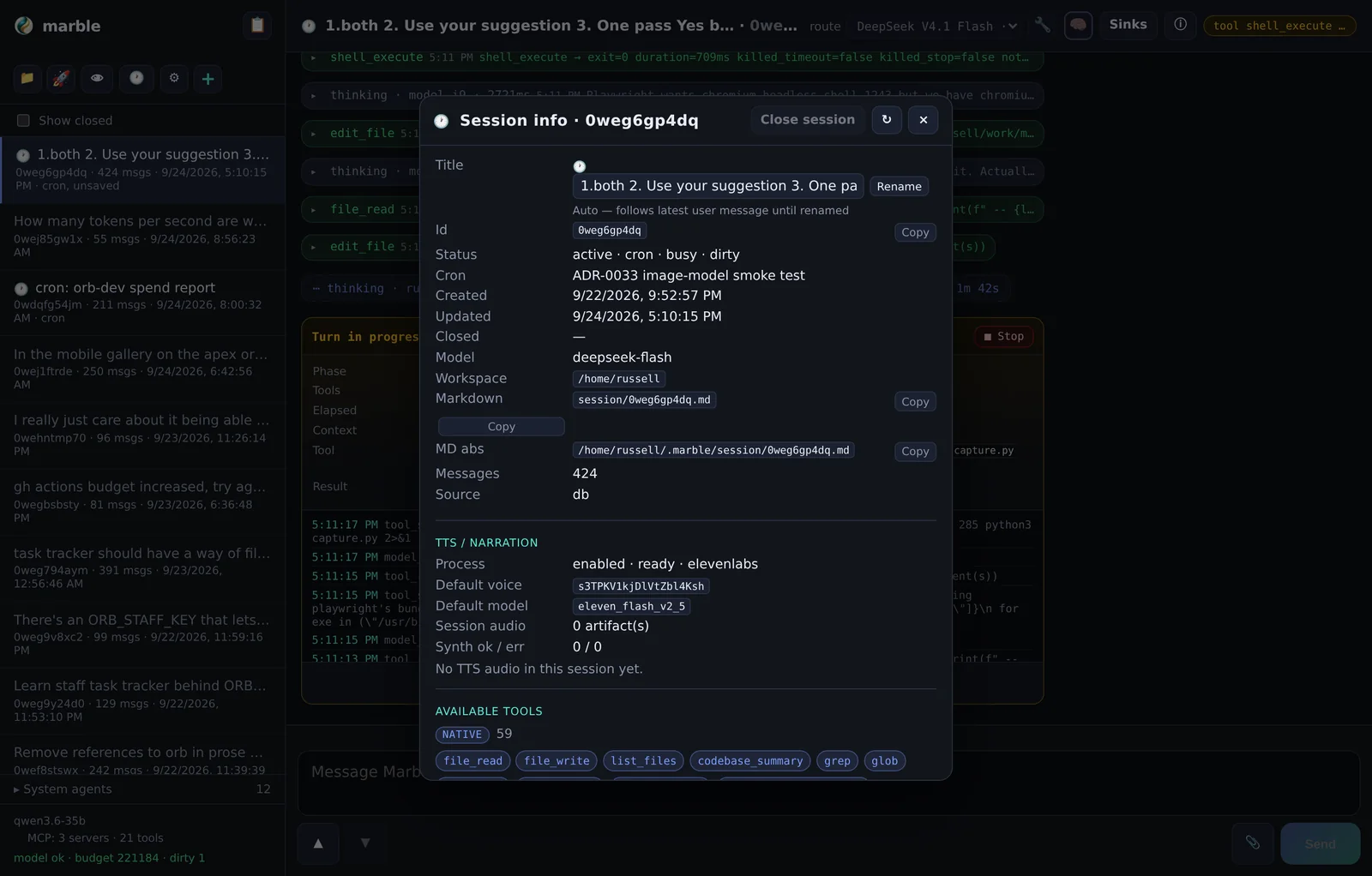

Session info: token usage, tool histogram and recent events for the session.

Anti-thrash

Long agent loops fail in characteristic ways, so several are blocked outright (ADR-0022): identical repeated tool calls fail rather than spin, sleep-only shell commands are refused, a stuck computer_* sequence escalates instead of looping, and browser eval mutations are capped.

Stopping

Stop cancels the turn and kills the process group, so a backgrounded server started by shell_execute cannot hang the turn. For work that legitimately runs long, use background tasks instead of backgrounding inside a call.

What the model always sees

System prompt and every-turn context

The 👁 button opens two things side by side: the immutable system prompt and your editable soul.

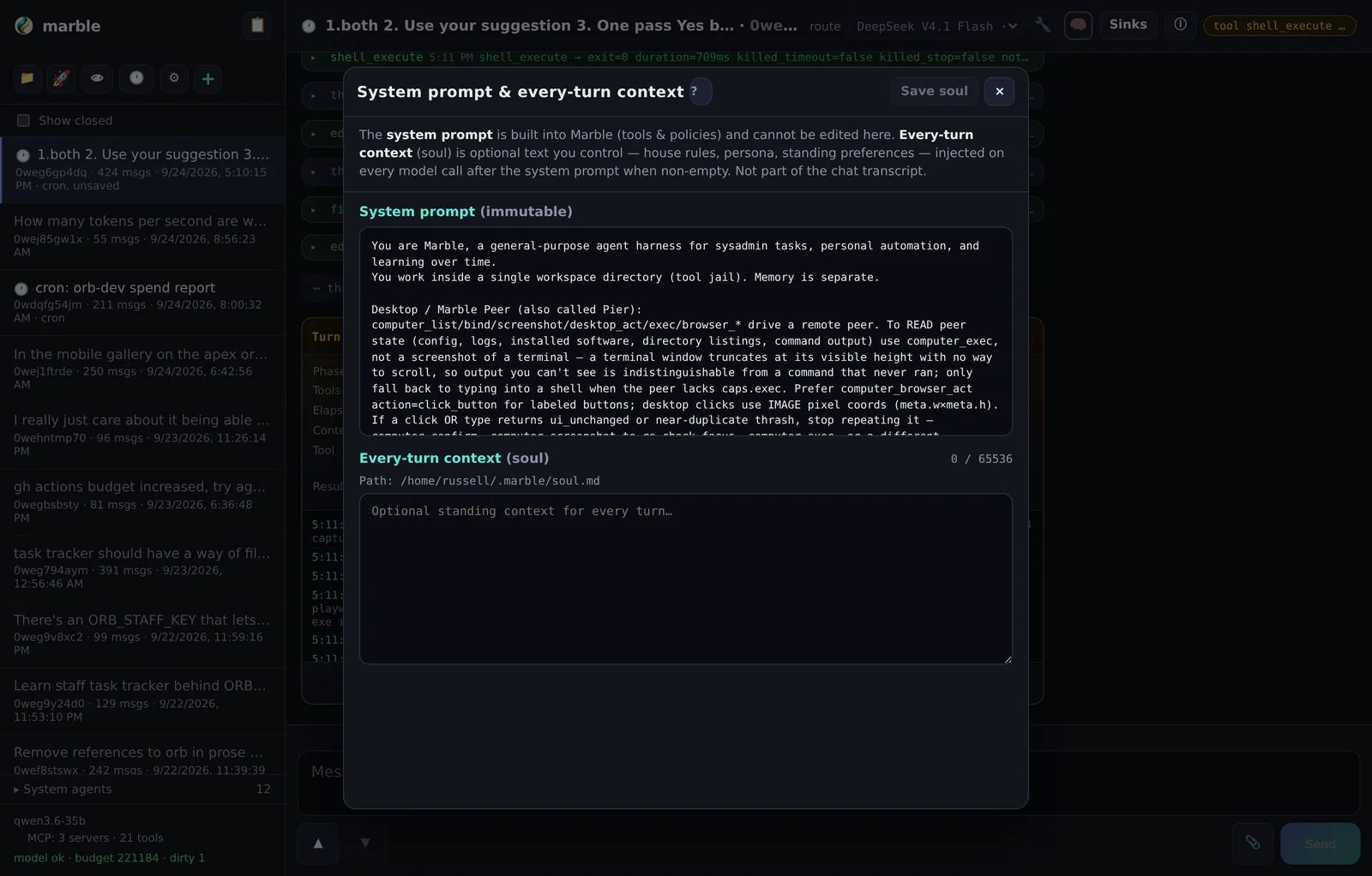

System prompt & every-turn context: the built-in prompt on the left, your editable soul on the right.

The system prompt

Read-only. It contains the harness's operating instructions — tool conventions, memory strategy, safety expectations, and the current environment. You can inspect it, not edit it. This is deliberate: the harness relies on those instructions being intact.

The soul — `~/.marble/soul.md`

The soul is an optional file injected as a second system message on every turn (ADR-0013). It is the cheapest place to put things you always want the model to know:

who you are and how you like to be spoken to
standing preferences — "always use metric", "never commit without asking"
pointers to your own conventions and where things live

# soul.md — injected every turn

I run a small fleet of machines. Prefer concrete commands over prose.
When I ask for a file, give me the path. Never push without asking.
My projects live in ~/projects; notes live in ~/.marble/knowledge.

The soul costs tokens on every turn. Keep it short and durable. Anything situational belongs in memory_write knowledge, which is retrieved on demand rather than always injected.

Soul vs. knowledge vs. skills

Mechanism	Loaded	Use it for
`soul.md`	Every turn, always	Identity, standing preferences, global constraints.
`memory_write` → `knowledge/`	Retrieved on demand via `memory_search`	Facts you want next time but not every time.
Skills	Loaded explicitly via `skill_load`	Procedural playbooks — multi-step recipes.

Pick your brain

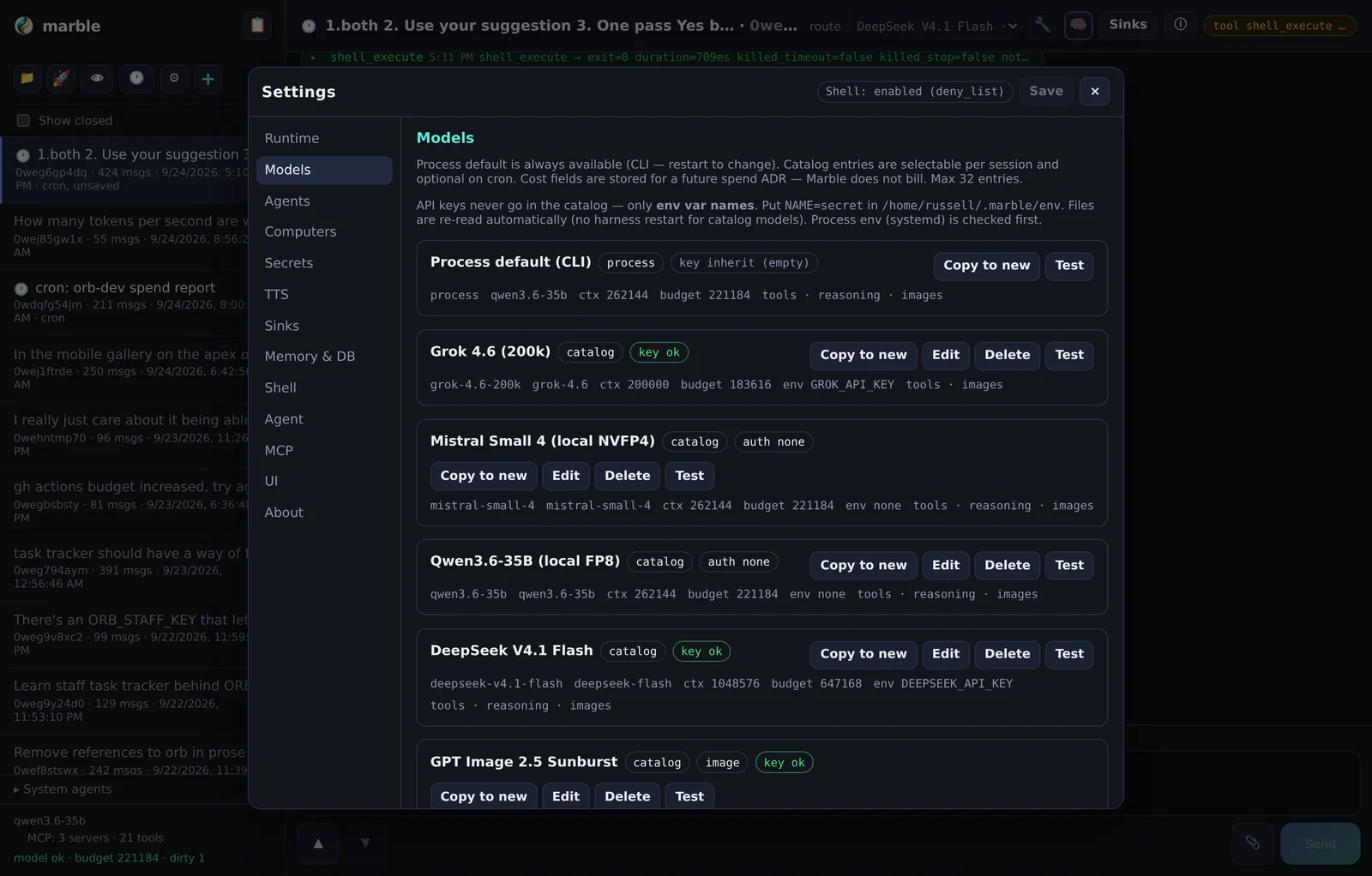

Models and providers

There is always a process default model — whatever you passed on the command line. On top of that, a catalog (ADR-0018) holds extra endpoints and models you can switch to per session or pin on a cron job.

Catalog entries

Each row stores:

Field	Meaning
id / display name	How it appears in the route picker and cron pin.
model	The string sent to the provider.
base_url	Provider root, e.g. `https://api.openai.com/v1`.
api_key_env	Env var name — never the key itself.
kind	`chat` (default) or `image`.
capabilities	images / reasoning / tools / voice.
limits	context window, max output, budget.

The agent can manage this catalog itself through model_list, model_get, model_add and model_update — including researching a provider's base URL and limits with the web tools first. Cap is 32 entries.

Local endpoints

No key by default: leave api_key_env empty and no Authorization header is sent. Point base_url at your own llama.cpp, vLLM, or Ollama server.

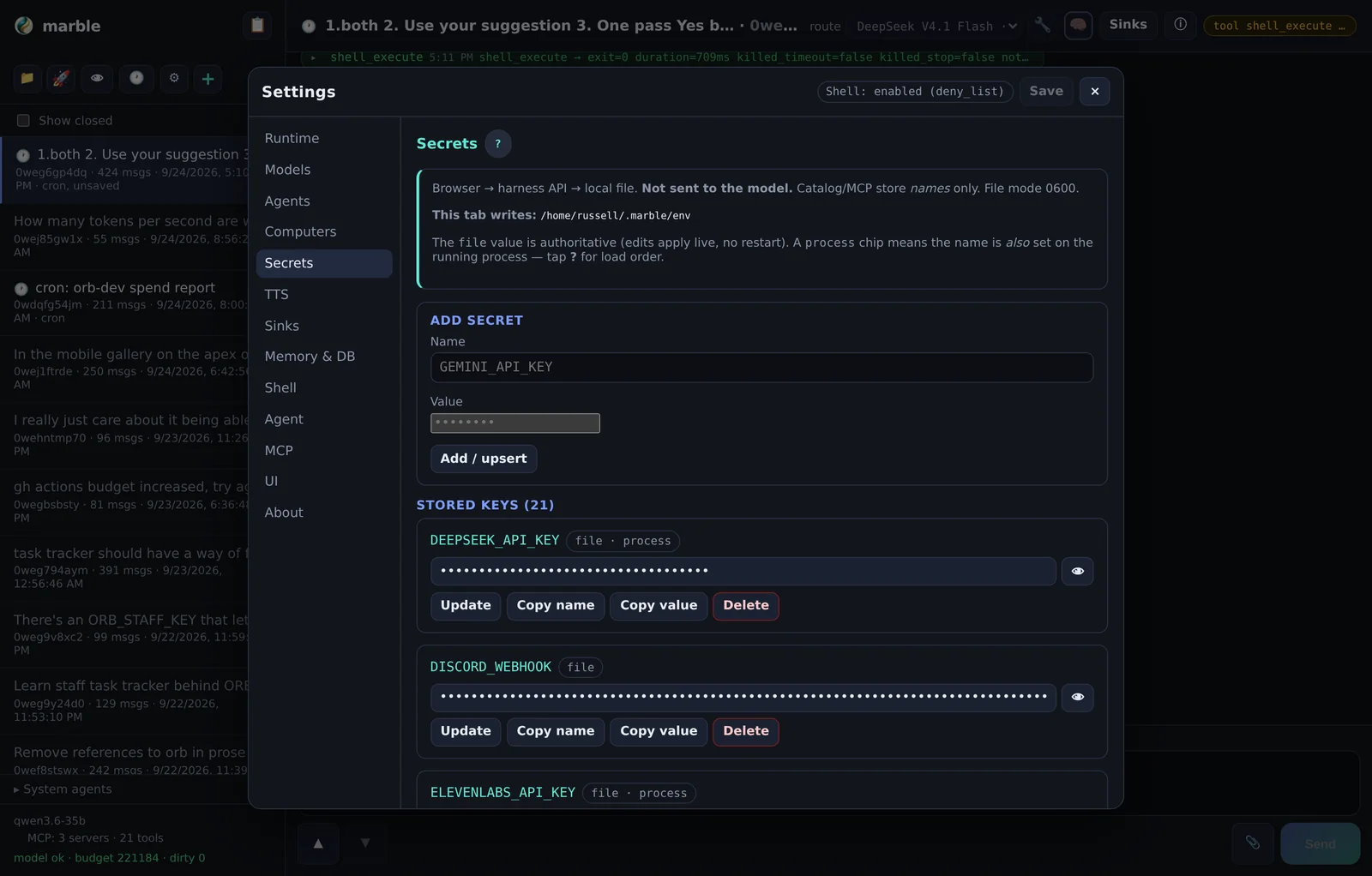

Marble stores only the env var name. The value lives in $MEMORY/env, which the model never sees — Settings → Secrets is a model bypass: browser → HTTP API → file write.

Rendering logos

Image generation and SVG

Image models are ordinary catalog entries with kind=image (ADR-0033). They are not session models — you cannot route a conversation to one — and the harness enforces that rather than letting the request fail at the provider.

Image-only models such as OpenAI's gpt-image-* are served on /v1/images/generations, not /v1/chat/completions. Registering one as a chat model produces a confusing HTTP 404 at the provider. Marking it kind=image is the fix; the harness then refuses to use it as a session model and points you at generate_image instead.

The `generate_image` tool

Your chat model calls generate_image, which resolves an image catalog entry, calls the Images API, writes the file into the workspace and attaches it to the chat.

Argument	Default	Notes
`prompt`	—	Required.
`path`	`generated/…`	Workspace-relative output path.
`model_id`	first enabled image row	Which catalog entry to use.
`size`	`1024x1024`	Also `1024x1536`, `1536x1024`, `auto`.
`quality`	`medium`	`low·medium·high·xhigh·max·auto`.
`background`	`transparent`	`transparent·opaque·auto`.
`output_format`	`png`	`png·jpeg·webp`.
`n`	1	Up to 4.
`vectorize`	`false`	Also trace the raster to a real SVG.
`attach`	`true`	Stage a durable chat attachment.

Getting an SVG out

Image models produce rasters — they cannot emit SVG. For a true vector logo the tool traces the raster it just produced (vectorize=true) and writes real <path> geometry, not a raster wrapped in an SVG envelope. Worth checking any vectoriser's output for <image> tags — if they are present, it is not vector.

Quality dominates cost, not size. On a 1024×1024 square the spread between low and high is roughly 30×. Use low for composition and iterate up only once the prompt is right.

Transparent backgrounds

background=transparent is the default because it is what most logo and asset work wants, and because a transparent PNG composites cleanly onto any page or app chrome.

The model's hands

The tool reference

These are the tools the model can call. The list is long because the harness is meant to be capable without plugins.

Filesystem and edits

Tool	Purpose
`file_read` / `file_write`	Read and write text files.
`list_files` / `glob` / `grep`	Navigate, find and search.
`codebase_summary`	Project tree with sizes.
`edit_file`	Targeted replacement — requires a prior read in the same turn.
`apply_patch`	Atomic multi-file edits with rollback on failure.

Everything runs inside the tool jail: the workspace directory. Paths that escape it are refused.

Shell

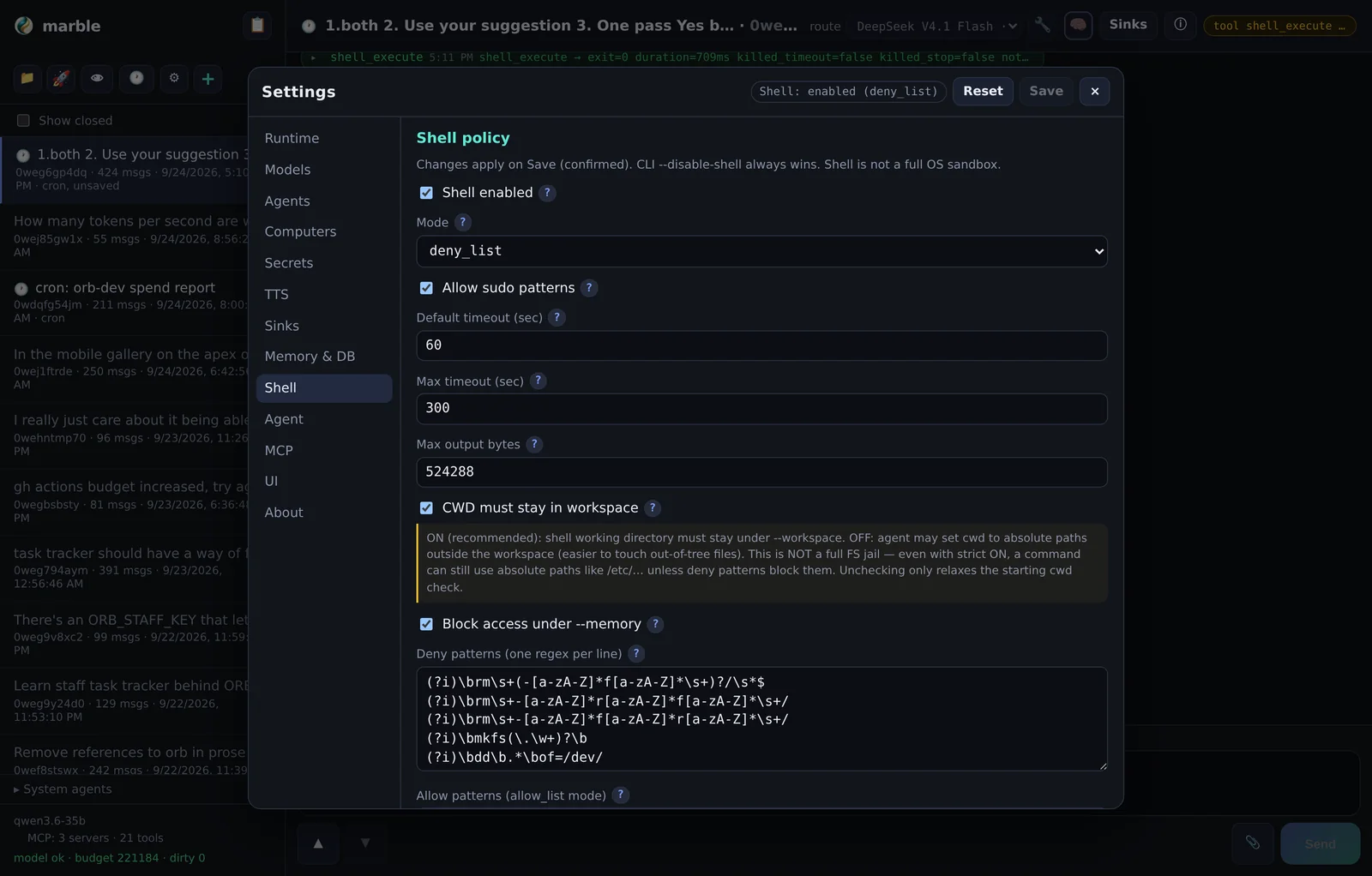

shell_execute runs commands on the harness host under a deny-list policy with timeouts and output caps, and can be disabled entirely with --disable-shell.

For anything long-running use the background-task trio instead of backgrounding inside a call — they give you a task id, survive the turn, and are pollable:

Tool	Purpose
`start_background_task`	Start a long job; returns a `task_id`.
`check_background_task`	Status, exit code and tail of one task or all of them.
`kill_background_task`	Terminate (SIGTERM, or force).
`schedule_continuation`	One-shot delayed resume: after N seconds and/or when a background task finishes.

Web and MCP

Tool	Purpose
`web_fetch`	Fetch a URL as markdown/JSON. LAN allowed; cloud metadata blocked.

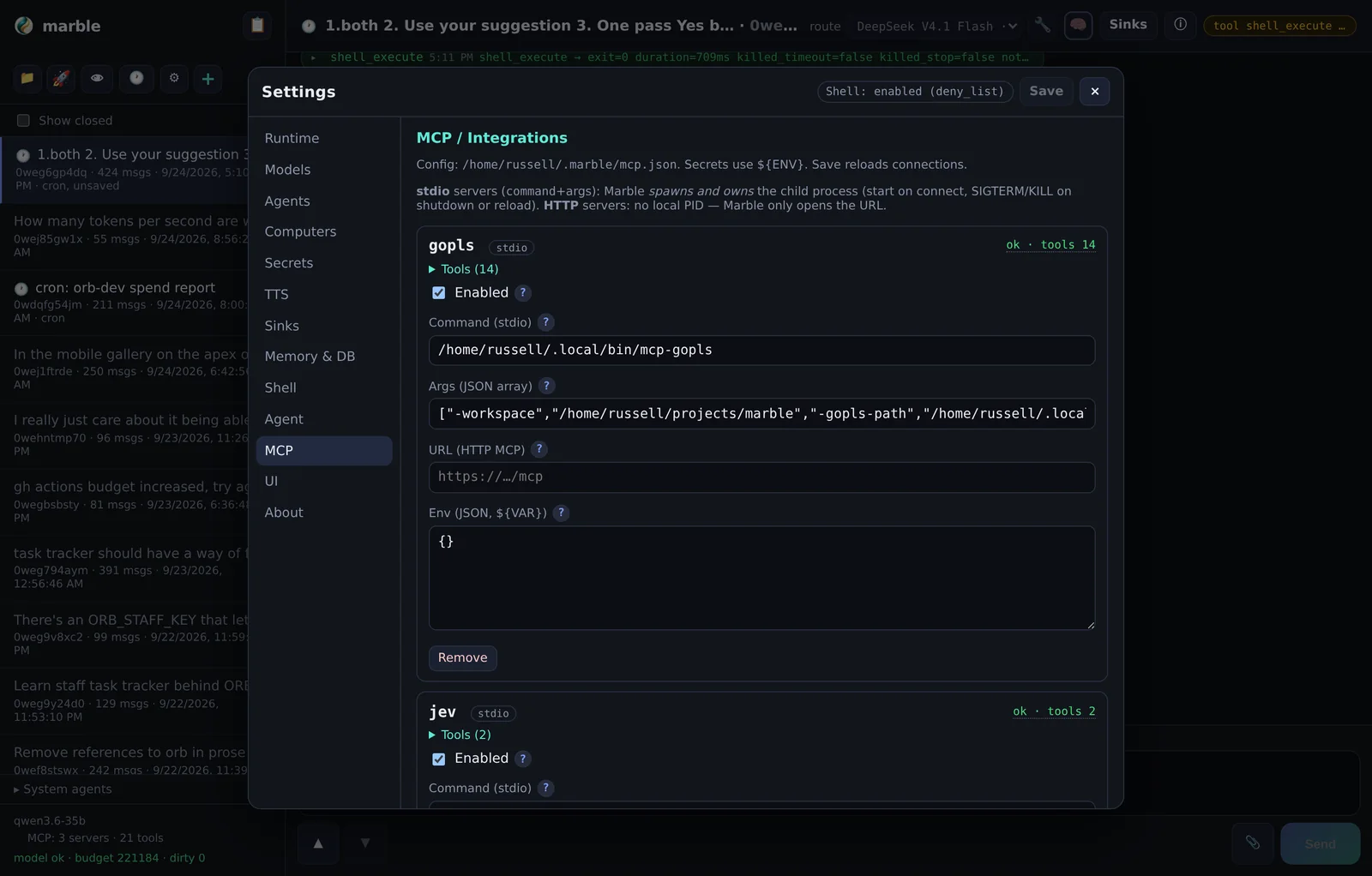

`mcp_*`	Tools from Model Context Protocol servers configured in `mcp.json`.

Research pattern: use an MCP search server (e.g. Tavily) to discover real URLs, then web_fetch the ones worth reading. Do not invent URLs.

Memory and skills

Tool	Purpose
`memory_search` / `memory_fetch`	Search and read session, daily and knowledge memory.
`memory_write`	Persist intentional knowledge under `knowledge/`.
`skill_search` / `skill_load`	Find and load procedural playbooks.
`get_context_usage` / `session_compact`	Inspect context and compact deliberately.

Attachments and images

Tool	Purpose
`message_attach`	Workspace file → durable chat chip.
`attach_from_url`	Remote image URL → chip, with provenance in `meta_json`.
`generate_image`	Prompt → image in the workspace (+ optional SVG trace).
`attach_file`	Ephemeral workspace preview that vanishes with the turn.

Publishing

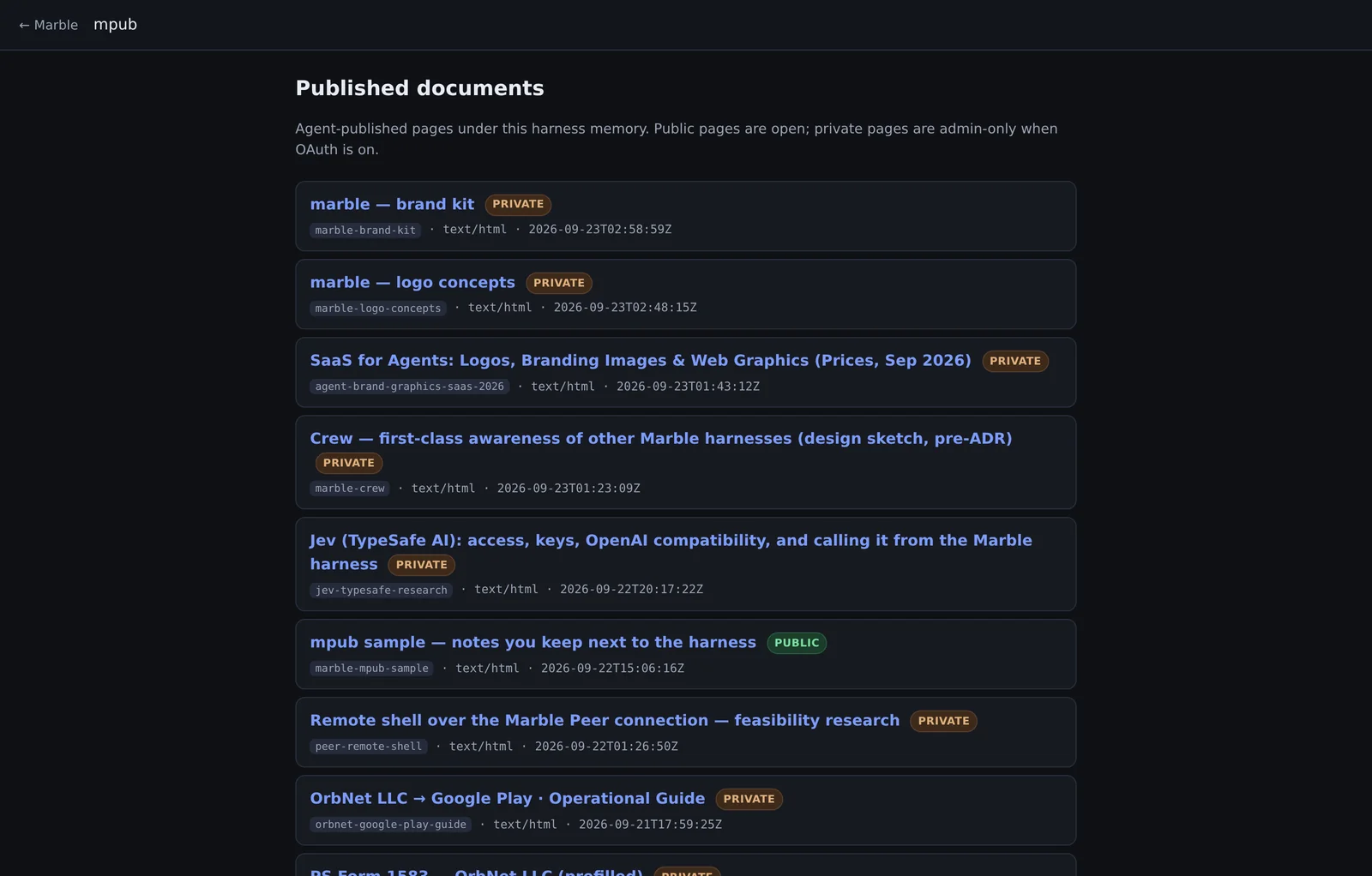

mpub_publish / mpub_list / mpub_get / mpub_unpublish / mpub_set_visibility — see mpub.

Orchestration

Tool	Purpose
`call_agent_process`	Run an external coding agent headless. See dedicated section.
`cron_*`	Durable recurring schedules. See Cron.
`manage_sinks`	Mirror finished turns to external channels. See Sinks.
`agent_preset_*` / `session_set_agent_preset`	Subprocess routing. See Agent presets.
`computer_*`	Remote desktop/browser. See Computer use.

Delegating to other agents

call_agent_process

call_agent_process runs an external coding agent headless as a subprocess and returns its output (ADR-0014). Instead of you pasting a task into another tool, the harness hands it over directly.

Parameter	Purpose
`format`	`grok` or `claude` — which CLI driver to use.
`prompt`	Short, implement-focused task description.
`cwd` / `workdir`	Where it runs. Prefer a real repo root, not an empty dir.
`background`	Return a `task_id` immediately — preferred for multi-minute work.
`extra_args`	Allowlisted CLI flags such as `--effort`, `--max-turns`.
`context`	What session context to inject — `full+memory` by default, or `none` for isolated runs.
`timeout_sec`	Wall timeout.

Why you would use it

Volume work — a refactor across twenty files is better handed to an agent with its own context window than driven tool-call by tool-call.
Different strengths — use a fast agent for mechanical edits and the session model for judgement.
Isolation — context=none gives a throwaway run with no transcript leakage, which is what you want for a one-off experiment.

Judge background progress by progress.cwd_mtime_changed and stuck_hint, not by "the poll output looks the same" — a working agent editing files quietly looks identical to a stalled one if you only diff the JSON. Do not kill a run under 5–8 minutes unless stuck_hint says so.

Context injection

By default a subprocess receives the session transcript plus relevant memory, so it starts knowing what you were doing. That is usually right and occasionally wrong — a large transcript wastes the child's window and can bias it. context=[...] picks sources explicitly (compact, full, memory, read_paths); context=none sends nothing (ADR-0031).

Sessions that are another CLI

Agent presets and routing

Agent presets (ADR-0030) are named subprocess configurations — a driver (grok, claude, opencode), a command, and defaults. Marble detects which ones are installed on the host and shows a badge.

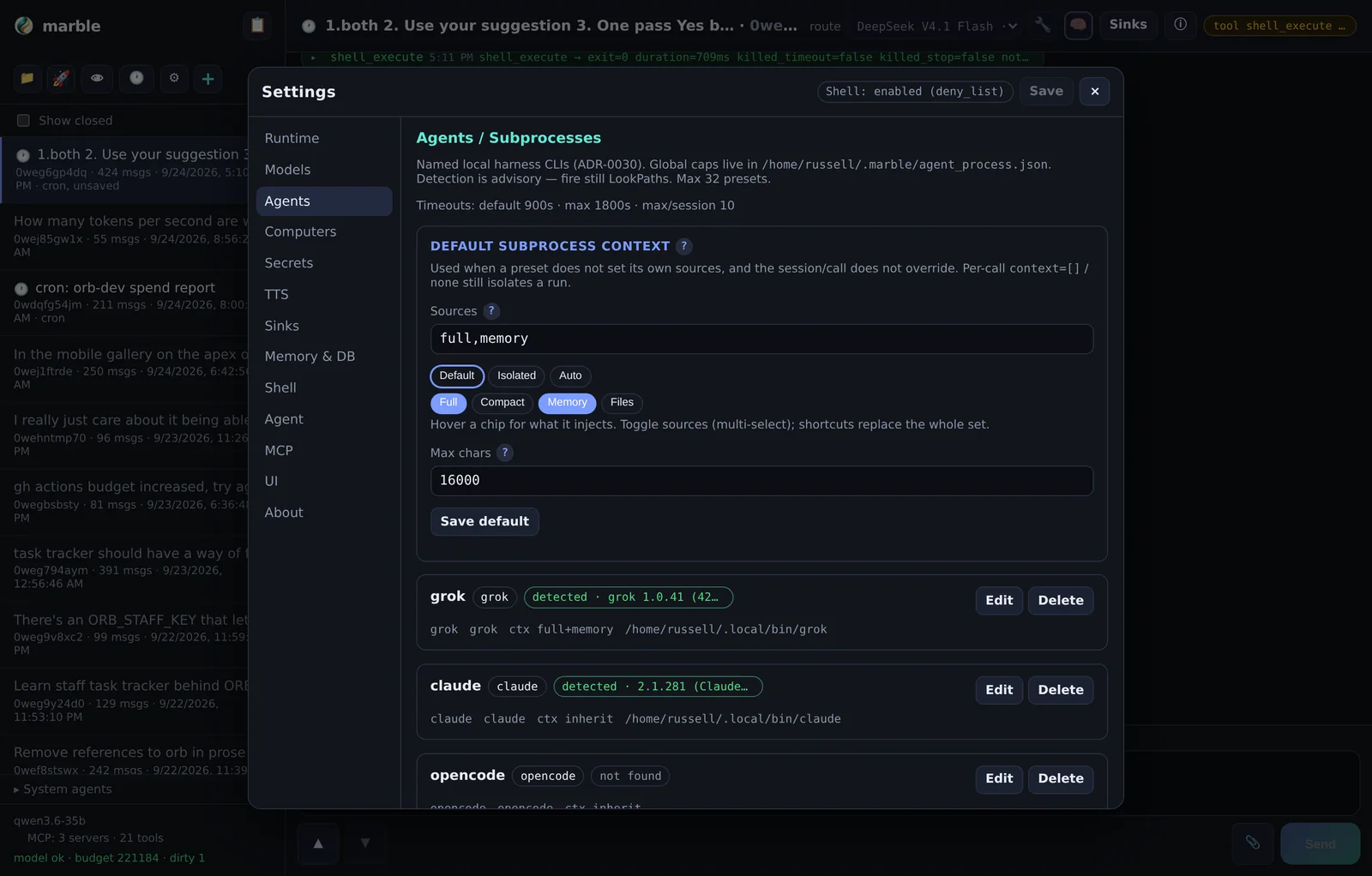

Settings → Agents: the preset catalog, plus the default subprocess context.

Three ways to route

Scope	How	Use when
One turn	Long-press / right-click Send	A single task belongs elsewhere.
Whole session	The route picker in the header	This conversation is that agent's job.
By schedule	A `model_id` pin on a cron job	The nightly job should run on a specific model.

When a session is locked to a preset, every user turn goes to that subprocess and the Marble model is not called at all.

Settings → Agent: subprocess defaults, including what context gets injected.

Cost note

Because a routed session bypasses the Marble model entirely, the token accounting you see in session info no longer describes what you are paying for. The subprocess has its own billing.

Your files, in the UI

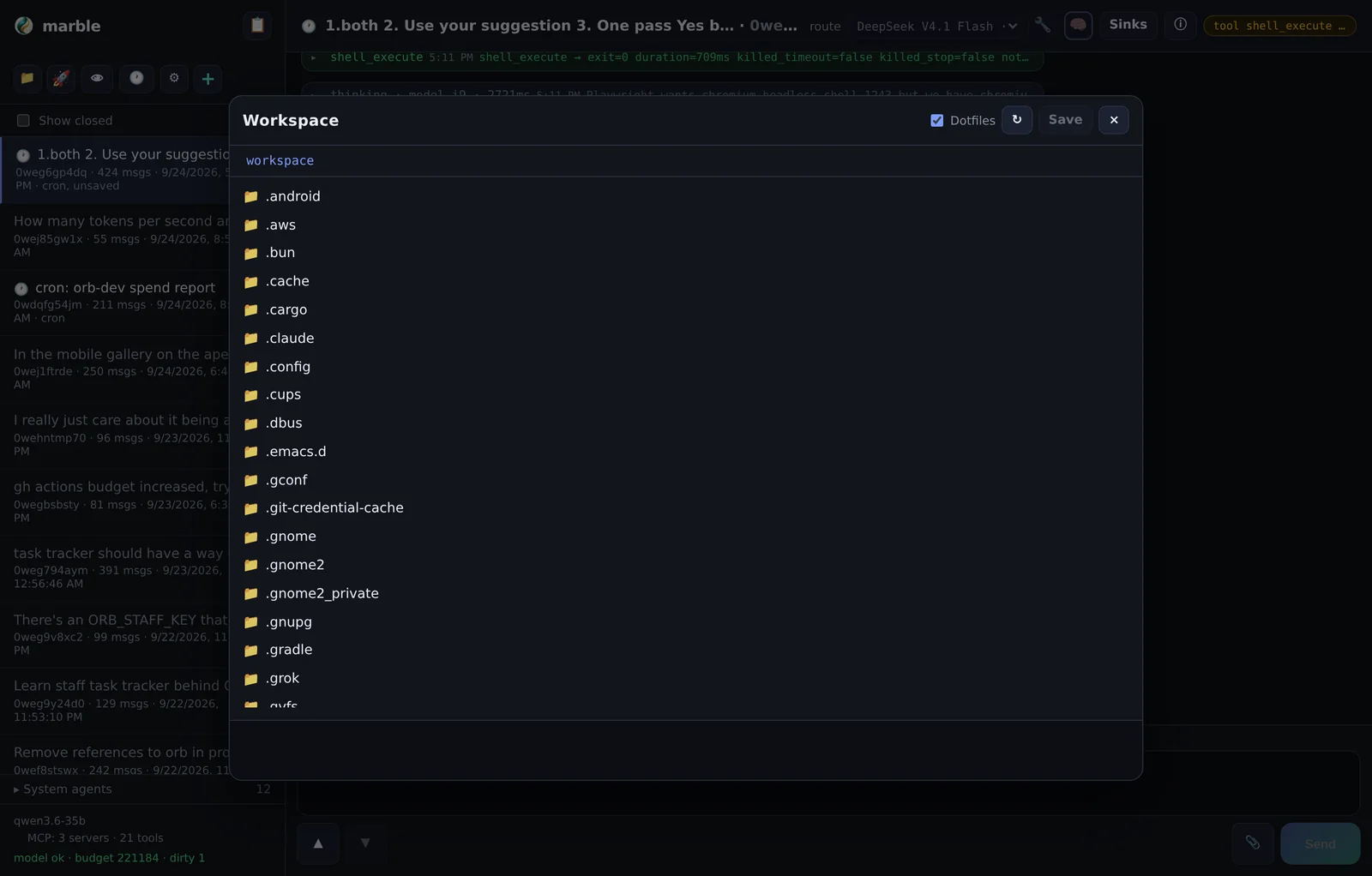

Workspace explorer

The 📁 button opens a file browser over the same jail the agent's filesystem tools use (ADR-0004). Browse, open, edit and upload — without leaving the UI or opening a shell.

What it is for

Checking the agent's work. When it says it wrote a config file, look at it.
Small edits without a shell. Fix a typo in a script the agent wrote.
Uploads. Drag a file in where the agent can reach it — the same jail, so the agent sees it immediately.
Retrieving output. Pull out a generated image, CSV or report.

The explorer is scoped to the workspace, which is the tool jail. Your $MEMORY directory is normally outside it, so memory and secrets are not browsable from here — that separation is deliberate.

What needs you

Clerk — the attention dashboard

Long-running agents accumulate sessions. Clerk (📋, ADR-0023) answers one question: what needs my attention right now? It summarises sessions, surfaces ones that are blocked on you, and lets you jump straight in.

Clerk: per-session summaries, needs-you flags, snooze controls and jump-to-session.

Features

Control	Purpose
Summaries	A short read on where each active session stands.
Needs-you	Flags sessions waiting on a decision or a confirmation.
Snooze	Hide a session until later; a badge shows how many are snoozed.
Show closed / snoozed	Reveal the sessions you have filtered out.
Jump	Open the session directly.

Clerk state is durable (schema v6–v7) — snoozes survive a restart.

Clerk is the reason to prefer several focused sessions over one endless one. A single mega-session is hard to summarise and impossible to snooze selectively.

Recurring work

Cron jobs

Cron jobs are durable recurring schedules stored in SQLite (ADR-0015). They survive restarts and keep firing when you are asleep — provided the process is running and, on a laptop, that lingering is enabled.

The cron modal: schedule, target session, prompt, optional model pin, and run history with next-fire preview.

Two schedule kinds

Kind	Syntax	Minimum
cron	5-field: `min hour dom mon dow`	—
interval	seconds	60 s

On fire the harness injects [cron:id name] plus your prompt into the target session and starts a turn. If the target session is missing it is created and the job is rebound; if the session is busy the fire is skipped; if the model is down or the harness is in limp mode, fires pause.

Limits

Limit	Value
Jobs	50
Concurrent cron turns	3
Run history	Last 50 per job and/or 30 days

Jobs can pin a model_id, so a cheap nightly job can run on a cheap model while your interactive sessions use a larger one. Sessions bound to a cron job show a 🕐 badge in the sidebar.

Cron is for recurring work. For a single delayed resume use schedule_continuation — a one-shot that does not create a durable job.

Typical uses

A Friday inbox triage that writes a summary and pings you via a sink.
A nightly repo sweep that writes findings to knowledge memory.
A morning briefing that reads what overnight jobs produced.

Push results to where you are

Turn sinks

A sink mirrors finished turns to an external channel (ADR-0028). When a session goes idle, the final assistant message is delivered to every enabled sink whose filters pass.

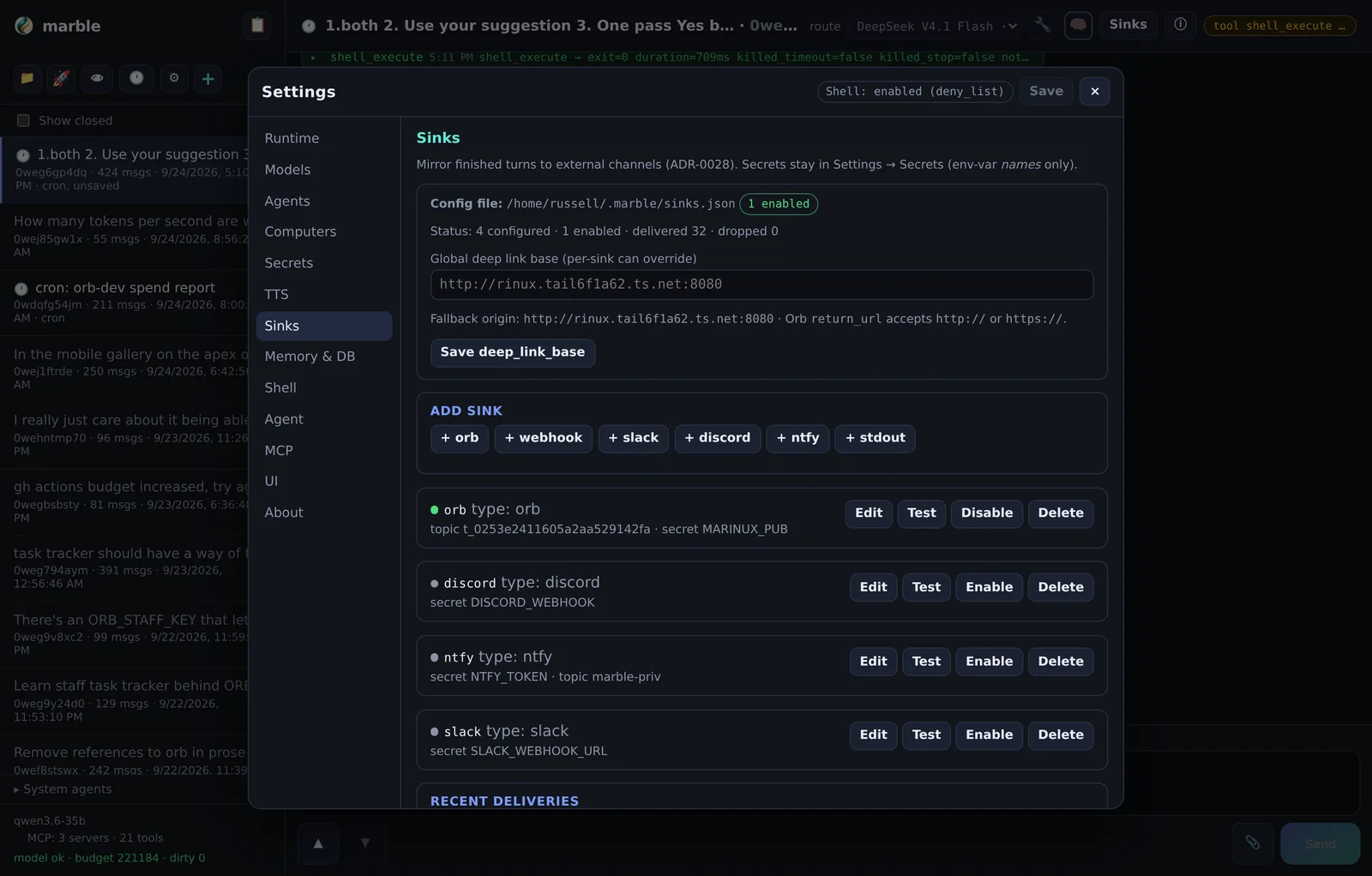

Settings → Sinks: per-sink editors, a live delivery history, and a per-session inherit/on/off popover.

Supported sinks

Type	Needs	Success code	Format
Orb	`topic_id` + `secret_env`	202	Markdown; sets `X-Orb-Return-Url` and `X-Orb-Run-Id` so clients can group turns
Slack	Incoming-webhook URL	200 (`ok`)	Block Kit
ntfy	`topic` (token optional)	200	Title / Click / Priority headers, plain body
Discord	Webhook URL	204	Embed
webhook	`url` + template	2xx	Your Go template
stdout	—	—	Plain or JSON to the harness log

Filters

Each sink chooses which turn kinds it mirrors (complete, error, stop, cron, continuation) and can skip empty turns and cron fires. The defaults are complete + error, skip empty, skip cron — cron is excluded by default so a chatty nightly job does not flood you.

Per-session control

Overrides are per session: inherit (use the global setting), on, or off. That means you can silence a noisy session without disabling the sink everywhere. manage_sinks exposes the same actions to the agent.

ntfy: reserved topics need auth everywhere A reserved ntfy topic requires every receiving device to authenticate. Reserving a topic flips it to deny-all for anonymous clients — including your own phone or browser if it is not signed in. The failure is silent: publishing returns 200, the sink history says ok, the message is on the server, and the client shows nothing. Sign in on every device you want notified, or use a public topic with a long random name.

ntfy: the topic name is the secret An ntfy topic name is the password on the public server. Anyone who knows it can read and post. Use a long random name — and never paste an access token (tk_…) into the topic field. A token in the topic field publishes to a topic literally named after your credential.

Slack renders Markdown, not mrkdwn Slack's mrkdwn is a smaller dialect than Markdown. Marble sends the turn's raw text, so **bold**, ## headings and tables render as literal punctuation in Slack. Discord and Orb do not have this problem. It is cosmetic — the message still delivers with a 200.

Slack: the app name is the author Slack ignores username on modern app webhooks — the author is whatever you named the app. Name the Slack app marble if you want the messages to say so.

Deep links

Sinks include a link back to the session. With no deep_link_base configured that is the harness's own address — fine on your own devices, a dead link for anyone else. Set a global deep link base if the people receiving notifications are not on your tailnet.

When the agent needs hands

Remote computer use

The harness can drive a real desktop through a paired Marble Peer (ADR-0020, ADR-0021). This is a separate component you install on a machine where you are logged in.

Tool	What it does
`computer_screenshot`	Capture the peer's screen as an image.
`computer_browser_*`	Drive a real Chrome over CDP — tabs, clicks, form fills, snapshots.
`computer_desktop_act`	OS-level click, type and key events.
`computer_exec`	Run a command on the peer and read its output.
`computer_confirm`	Ask a human to Accept/Deny a risky action.

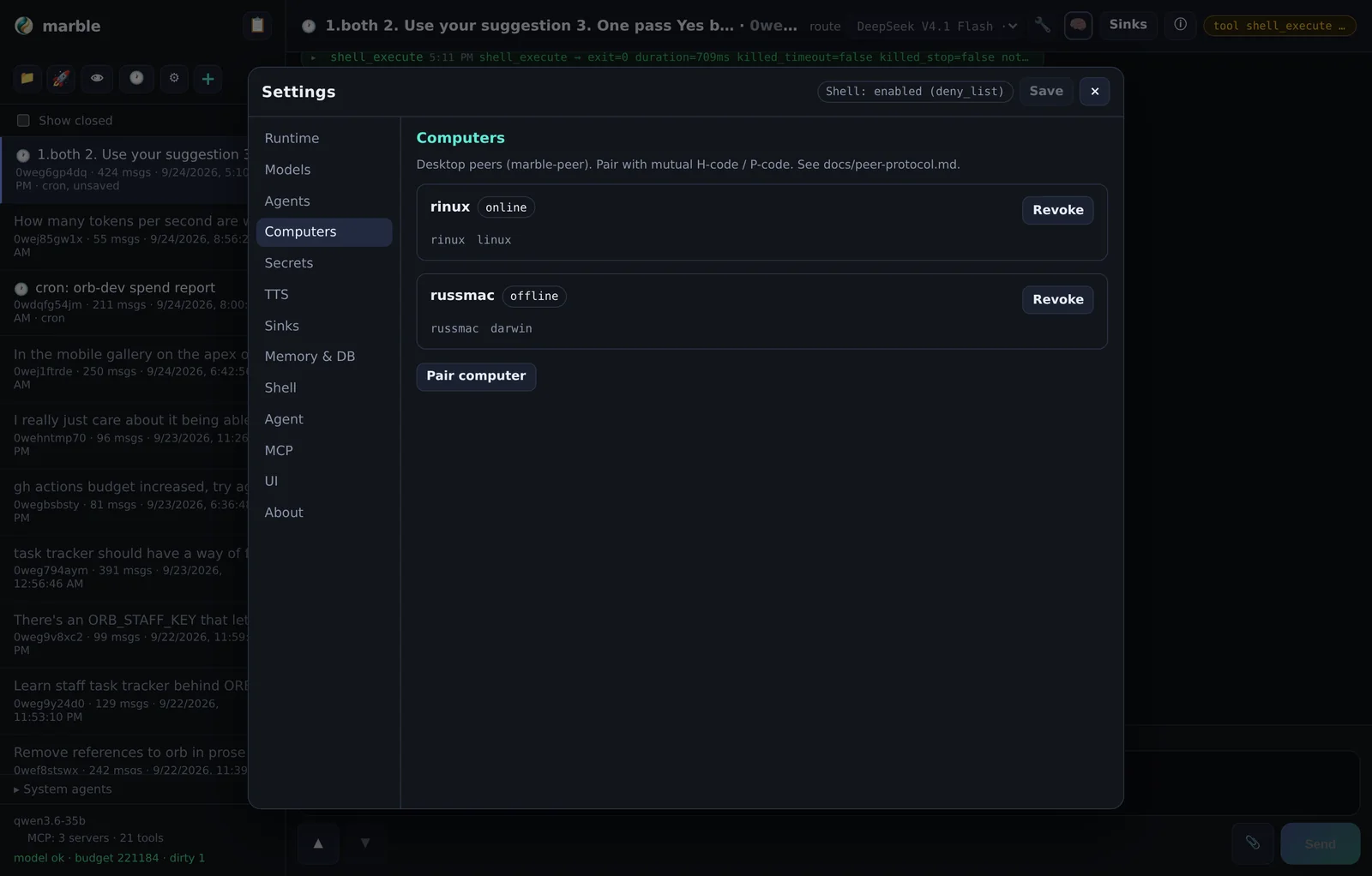

Settings → Computers: pairing and revoking peers.

Confirmations

Money and auth actions route through an Accept/Deny card — shown both in the session UI and on the peer itself, with a Tailscale-reachable /confirm/{id} link. The default is deny on timeout.

To read peer state — a config file, a log, installed software — use computer_exec, not a screenshot of a terminal. A terminal window truncates at its visible height with no way to scroll, so output you cannot see is indistinguishable from a command that never ran.

Browser sessions

Chrome blocks debugging on the daily profile, so the peer syncs logins into a mirror profile and attaches there. Your logged-in sessions carry over without handing the automation your main profile.

It remembers

Memory, knowledge and skills

Everything durable lives under ~/.marble/ by default. Transcripts are plain Markdown; structured state is SQLite.

~/.marble/
├── marble.db              # SQLite (WAL): sessions, events, settings, cron,
│                          #   model_catalog, attachments, computers, clerk, daemon
├── marble.lock            # single-writer lock
├── session/<id>.md        # first-class transcripts
├── daily/YYYY-MM-DD.md
├── blobs/                 # large payload spill
├── attachments/           # staged/committed chat files
├── knowledge/             # memory_write target
├── skills/                # optional skills
├── mpub/<slug>/           # published pages
├── soul.md                # optional every-turn context
├── mcp.json               # optional MCP servers
├── tts.json               # optional server-side TTS
└── env                    # secrets (mode 0600)

Three kinds of memory

Layer	Written	Read
Session	Every turn, automatically	Continuing the conversation.
Daily	Automatic rollups	Reviewing what you did on a date.
Knowledge	Deliberately, via `memory_write`	Retrieved by `memory_search`.

The distinction matters. Session memory is free but enormous and unstructured. Knowledge memory is intentional — it is where you put the thing you want the agent to know next month.

Write to knowledge when you finish learning something durable: a gotcha, a decision, an operator preference. If you find yourself re-deriving the same fact in two sessions, that is the signal.

Skills

Skills are procedural playbooks — multi-step recipes the agent loads when relevant rather than carrying in the prompt. skill_search finds them by keyword; skill_load pulls one in.

Maintenance

A background daemon flushes periodically, prunes closed sessions, garbage-collects blobs and attachments, and runs daily compaction. If the database schema is unreadable the harness drops into limp mode: chat and Markdown still work, and a banner explains why.

Keys the model never sees

Secrets and env

Provider keys never enter the transcript, the database, or the model's context. Catalog entries store an env var name; the value lives in $MEMORY/env at mode 0600.

Settings → Secrets. Writes go browser → HTTP API → file, bypassing the model entirely.

Resolution order

Order	Source	Notes
1	`$MEMORY/env`	Authoritative. Re-read live (~2s), so edits apply without a restart.
2	Process environment	Fallback for names the file does not define.

Because the file wins while it defines a name, a stale copy in the process environment (systemd EnvironmentFile= snapshot) is ignored. Delete a name from the file, however, and the process copy becomes visible again until you restart.

What this buys you

The agent can be given a capability by name without ever handling the credential.
Rotating a key means editing one file, not editing every place it was pasted.
Backups of the database do not leak keys.

umask 077
printf 'OPENAI_API_KEY=sk-...\n' >> ~/.marble/env
# or: Settings → Secrets in the UI (no restart needed)

Share what you made

mpub — publishing pages

mpub publishes HTML or Markdown as a page at /mpub/{slug}, with images, straight from the agent (ADR-0009). It is how you get research notes, reports and this kind of document out of a session and into a URL.

The mpub index: every published page, with visibility.

Assets

Pass workspace image paths in assets and reference them by bare file name — <img src="shot.png">. They are stored beside the page and served at the same visibility. Limits: 10 MiB each, 50 per page.

Reference assets by file name only, and never inline base64 — the payload gets large and the images stop being cacheable. For a long body already on disk use content_path rather than pasting it through a tool call.

Visibility

Visibility	Who can read it
private (default)	Allowlisted admins when auth is on; everyone in open mode.
public	Anyone, no login.

Promote or demote later with mpub_set_visibility — no need to rewrite the body.

New pages default to private. Make one public only when you explicitly mean to. Anonymous requests for private or missing slugs both return 404, so a private page's existence is not leaked. Every mpub response sends a strict CSP that disables scripts.

Optional narration

Server-side speech

The harness can speak a session's replies aloud (ADR-0027), configured in tts.json with an ELEVENLABS_API_KEY. It is off by default — key absent means the feature is inert, not broken.

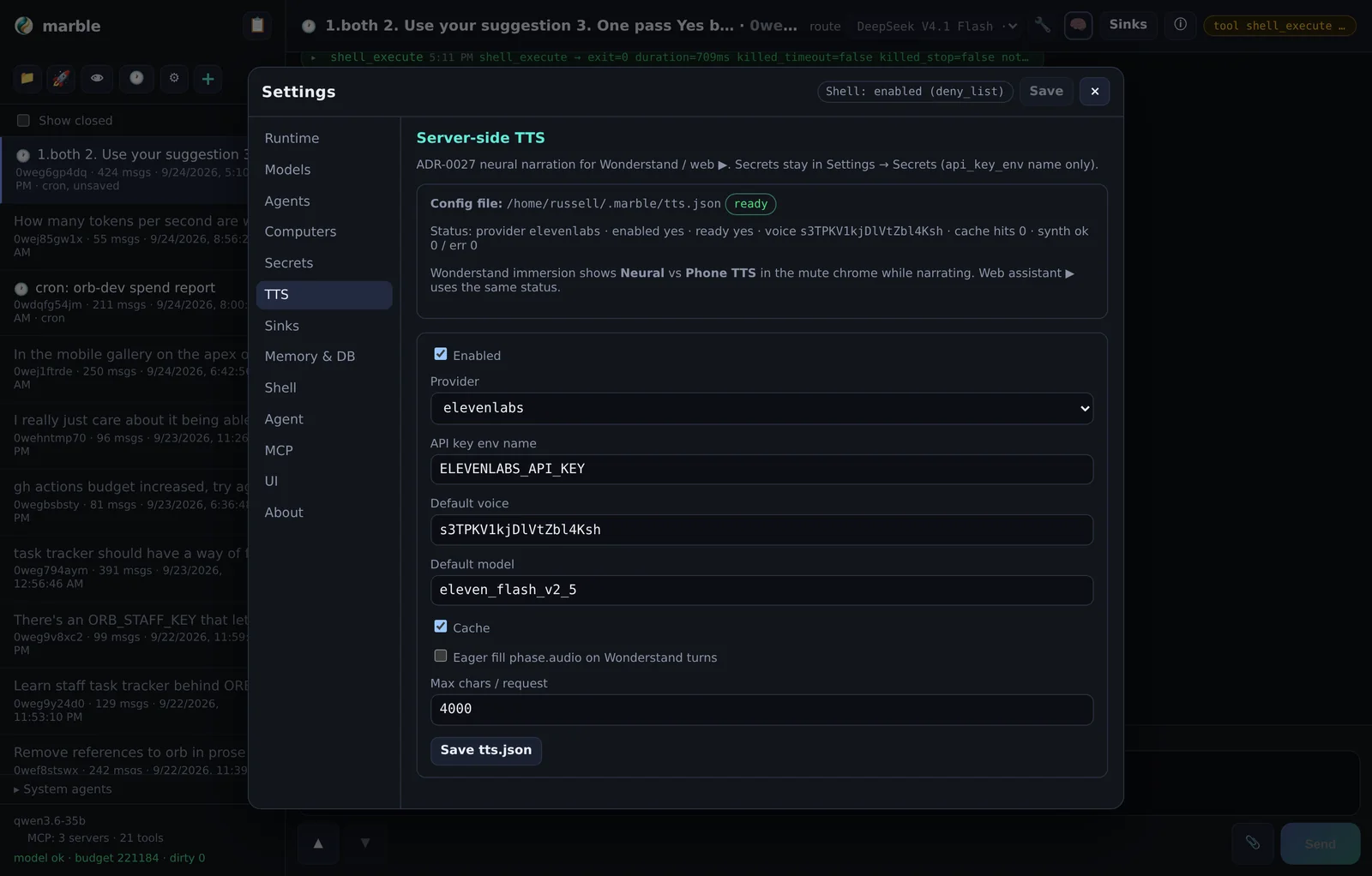

Settings → TTS: provider, voice and cache behaviour.

Audio is attached to the session and fetched inline, with an optional cross-session cache in tts-cache/ so repeated phrases are not re-synthesised.

Set the provider key through Settings → Secrets by name. A missing key degrades to silence; it should never fail a turn.

Who can reach it

Auth and access

Two modes (ADR-0017):

Mode	Behaviour
open (default)	No login. Local-operator trust model — right for a box only you can reach, including over Tailscale.
google	Sign in with Google once OAuth flags and an allowlist are complete.

Allowlisted users are full admins, and chat sessions are shared — this is a single-operator tool, not a multi-tenant service.

User identity is shown in the UI, in Markdown transcripts and in events, but is never forwarded to the model. Attribution is for you, not for the model's context.

For TLS, either pass certificate and key files or terminate TLS at a reverse proxy. Login is rate-limited and pending OAuth state is capped to blunt trivial DoS.

Do not expose the harness to the public internet in open mode. The intended deployment is a tailnet or a private network; if you need it public, enable Google auth and put TLS in front.

Every tab

Settings reference

Settings is a modal with a nav rail. Thirteen tabs:

Tab	What lives there
Runtime	Process default model and endpoint, listen address, auth mode.
Models	The catalog — endpoints, models, `kind`, capabilities, limits.
Agents	Subprocess presets and default context injection.
Computers	Paired peers — pair, revoke.
Secrets	`$MEMORY/env` editing, with live re-read.
TTS	Speech provider and voice.
Sinks	Turn mirrors, filters, delivery history.

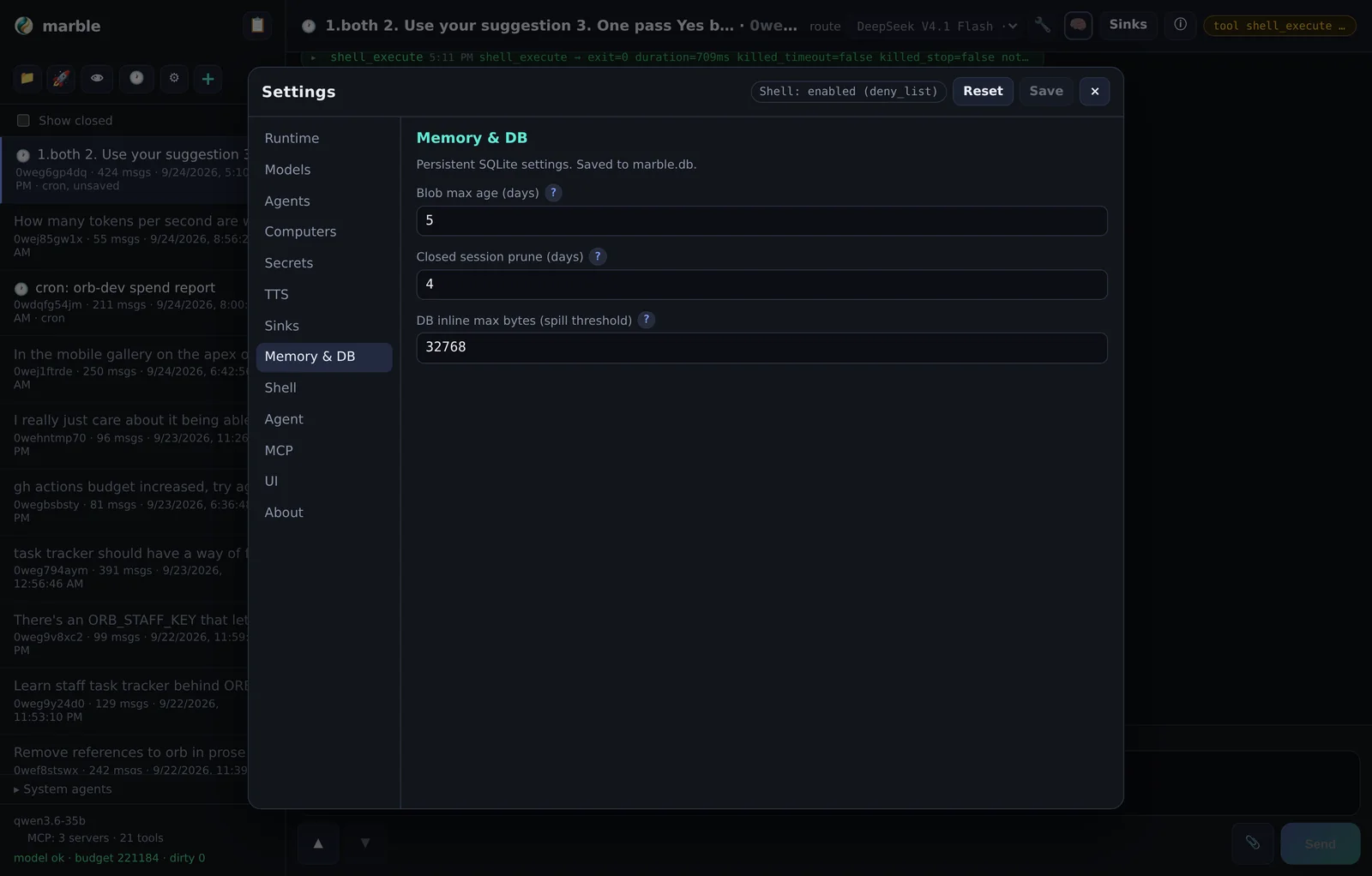

Memory & DB	Memory paths and database settings.
Shell	Shell policy and limits.
Agent	Subprocess defaults and context.
MCP	MCP servers from `mcp.json`.
UI	Density defaults, theme, interface preferences.
About	Version and build information.

Very much a sketch

Wonderstand (experimental)

Wonderstand is an experimental client direction: a lightweight client that renders harness output without executing scripts, aimed at small screens and constrained devices. Its protocol is specified in ADR-0024 (client) and ADR-0025 (protocol), with a payload sketch in docs/wonderstand-protocol-sketch.md.

Piece	Where
Client design	ADR-0024 — pointer
Protocol	ADR-0025 — accepted
Payload sketch	`docs/wonderstand-protocol-sketch.md`
Reference client	A separate Android project (Kotlin/Gradle)

What the protocol does

The harness emits structured payloads — text, speech text, and inline SVG — for a client that deliberately does not run scripts. Rendering is declarative, which is what makes it safe to hand harness output to a thin client.

This is the least settled part of the project. The protocol has a number and an accepted ADR, but treat the client as a sketch and expect the payload shape to move. Nothing here is a supported interface yet.

Status

Experimental. Not part of the supported feature set, not required for anything described above, and placed at the end of these docs on purpose.

Everything the harness does, and how to drive it.

What Marble is

The mental model

Install and first run

The interface

Sidebar

Main pane

Turn progress and density

Themes

On a phone

Long-press and right-click

🧠 Reasoning effort

Send → route this turn

Where the session-level version lives

How a turn runs

Budgets

Context budget, compaction and the system agents

Anti-thrash

Stopping

System prompt and every-turn context

The system prompt

The soul — ~/.marble/soul.md

Soul vs. knowledge vs. skills

Models and providers

Catalog entries

Local endpoints

Image generation and SVG

The generate_image tool

Getting an SVG out

Transparent backgrounds

The tool reference

Filesystem and edits

Shell

Web and MCP

Memory and skills

Attachments and images

Publishing

Orchestration

call_agent_process

Why you would use it

Context injection

Agent presets and routing

Three ways to route

Cost note

Workspace explorer

What it is for

Clerk — the attention dashboard

Features

Cron jobs

Two schedule kinds

Limits

Typical uses

Turn sinks

Supported sinks

Filters

Per-session control

Deep links

Remote computer use

Confirmations

Browser sessions

Memory, knowledge and skills

Three kinds of memory

Skills

Maintenance

Secrets and env

Resolution order

What this buys you

mpub — publishing pages

Assets

Visibility

Server-side speech

Auth and access

Settings reference

Wonderstand (experimental)

What the protocol does

Status

The soul — `~/.marble/soul.md`

The `generate_image` tool
